5 ton transparent brine system block ice machine with material stainless steel
Our main products include all kinds of ice making machine,cold storage,Vacuum cooler,Snow making machine,Mine cooling system,Concrete cooling system,chemical reactor cooling system and so on.
Product Description Focusun utilizes both direct refrigeration technology and brine refrigeration technology to meet your different requirements. The standard weight & size of block ice Focusun produces are listed in the form below. Focusun can also customize the size of the block ice to meet your needs and requirements.

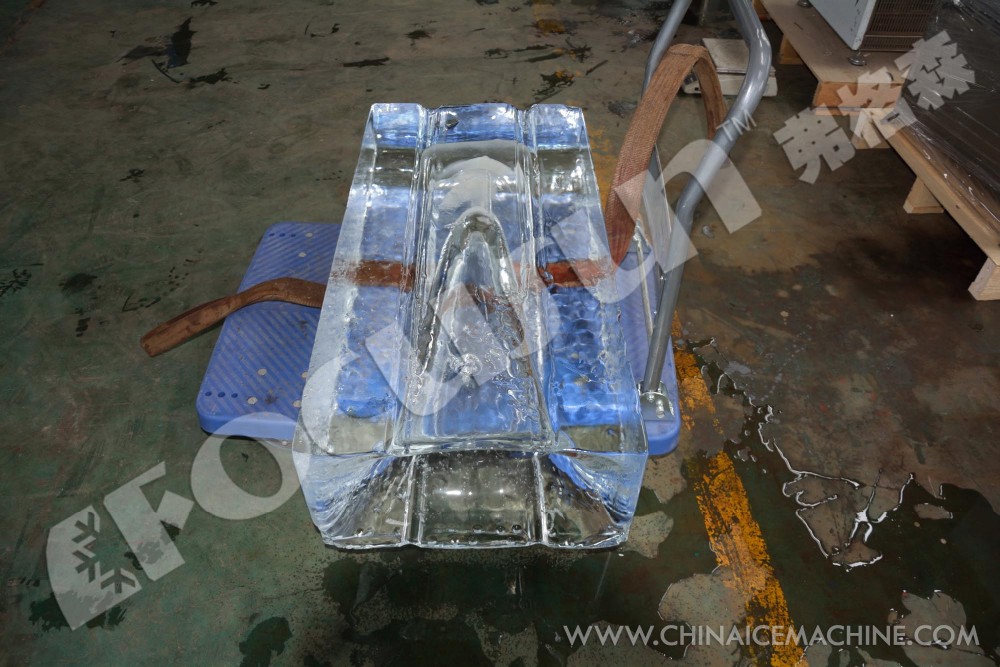

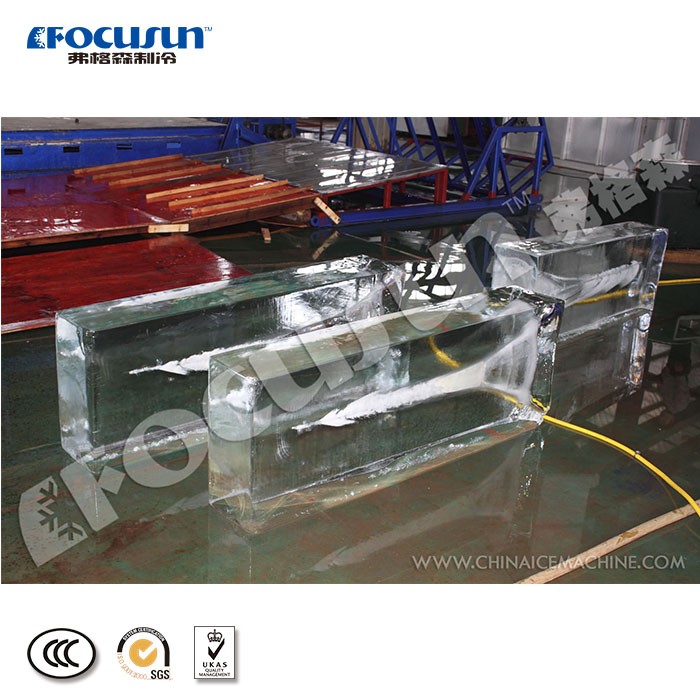

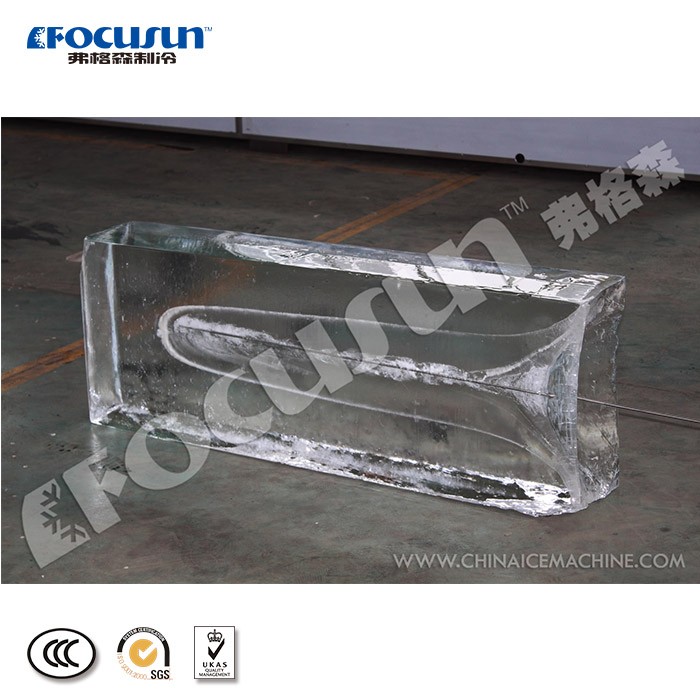

Block ice has a large dimension but has small contact area so it does not melt easily. It is usually cut into different pieces for different uses in ice sculpture, sea shipping and fish vessels. The small pieces of block ice can be also be used for various purposes. There will be a little loss because the ice will thaw partly when crushed. Focusun offers both transparent and milky white ice for your preference.

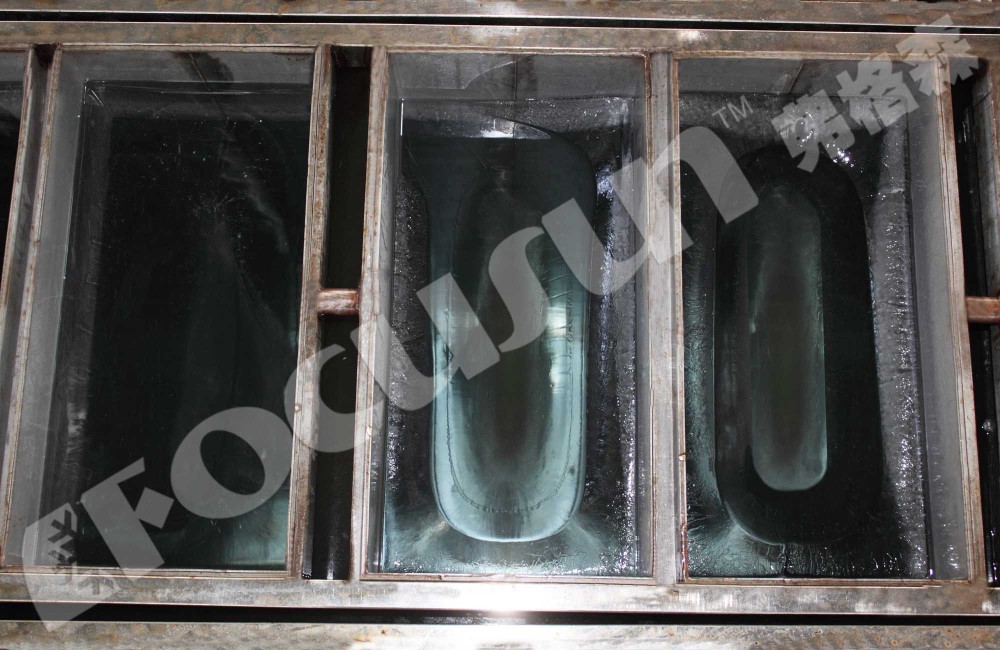

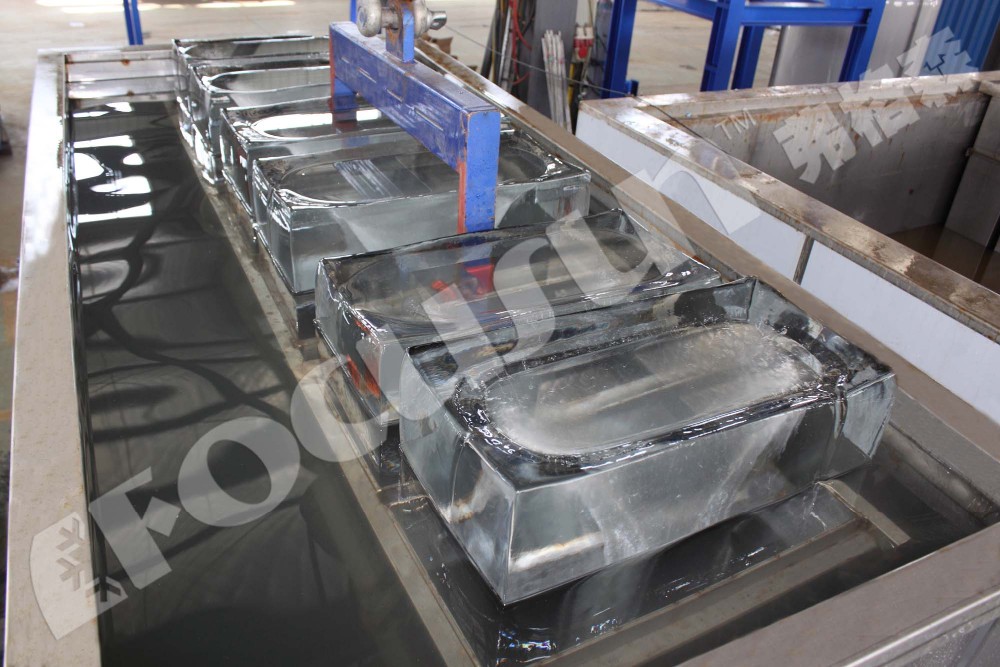

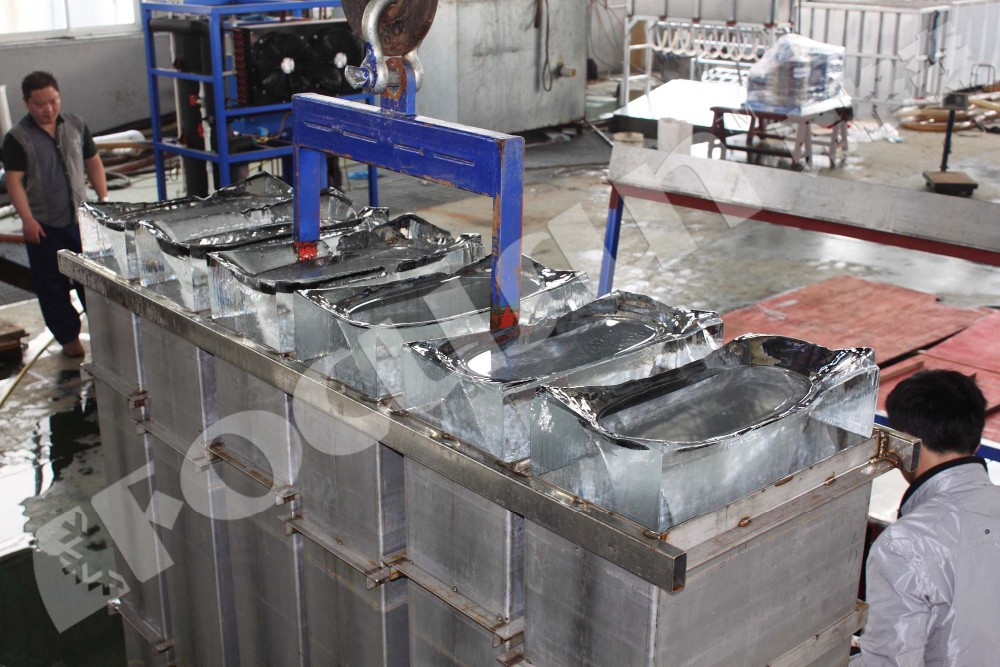

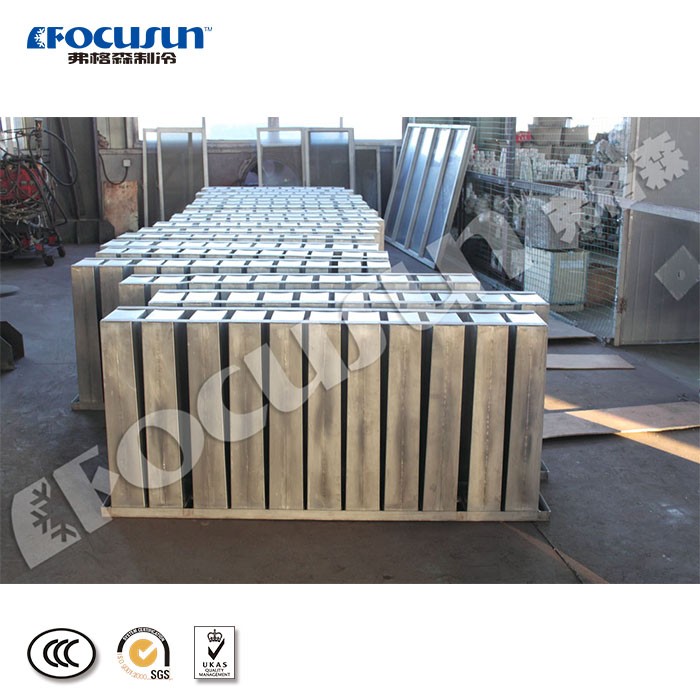

The ice making principle of brine system transparent Block Ice Machine is to put the ice bucket full of water into brine tank. With professional refrigeration technology, the water has heat exchange with brine water and the frozen into ice . The ice bucket will be hoisted by crane and heated in the thawing tank. The ice surface is melt so as to remove ice block.
According to the size of ice, ambient temperature, the temperature of inlet water, the ice making time of brine system transparent block ice machine is about 60~96 hours.
FOCUSUN engineers suggest to adopt transparent ice using brine technology with thickness more than 20 centimeters
Detailed Image Features: Batch production: 1~100 ton
Power supply: international standard full electric power supply.
Ambient temperature: 5℃
Water supply temperature: 20℃ (require clean water or increase water filter and soft water treatment equipment) Limit condition: environment: 5℃~40℃, water supply: 5℃~30℃ (variable range)
Cooling way: water cooling,air cooling,evaporative cooling
Compressor:GULUN/Bitzer/Bock/Carlyle/Mycom/Grasso or customer specified
- Special processing Evaporator , outstanding heat exchange efficiency, the real anti-rust, anti-corrosion guarantees long service time.
- The stainless PE parts between the brine and the fresh water is proper to mode and weld. And it works very well in a cold condition.

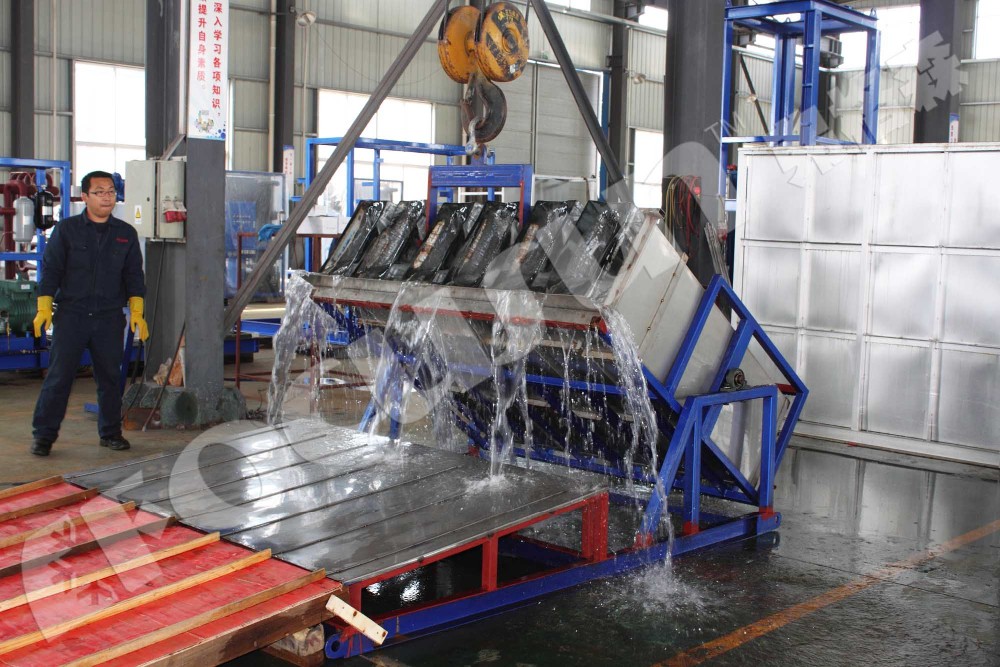

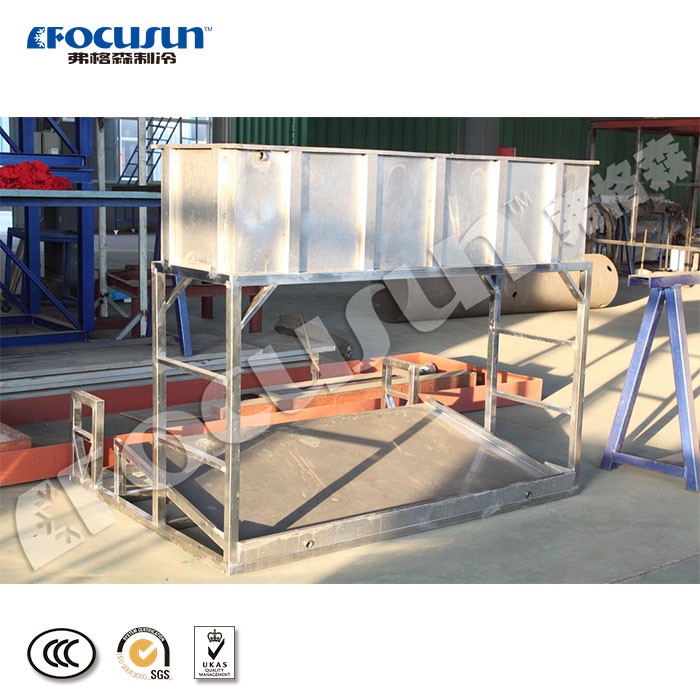

- The particular design of ice thawing tank and ice dumping unit bring easier operation.
- The thawing tank is heated by hot gas discharged from the compressor so that it is more energy saving and suitable for low water temperature area.
- Modular and integrated design ensures it is easy to ship, move and install on the spot.
- Leading and experienced transparent ice forming technology, easy to operate and durable.
Related Products Plate Ice Machine
Tube Ice Machine
Cube Ice Machine
Packing & Delivery Packing Details. The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Service Pre-Sales Service. * Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service. * Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Focusun has devoted itself into offering the most advanced complete plant, the most reliable design plan, and the most thoughtful after sale service, consequently helping our customers to create remarkable profits. Focusun's eternal faith is to continuously provide high quality products and distinguished sales service.
Focusun respects customers and understand customers with empathy. We try our best to consider all for our customers rather than only our own benefit. Focusun is all ears for customers' advice and suggestions which will be highly appreciated as the important way to improve our products and service.
Focusun pursues high efficient work and service which will save a lot of valuable time of our customers. Focusun's fast-response mechanism can ensure the most efficient service for our customers internationally.
Certifications FAQ Q1. What is your terms of packing?
A: Generally, we pack our goods in platict films or cartons, normally a FCL shipping.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance. You're welcome to see the test of the machines for days.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 45 to 60 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: No, all the machines are customized according to power supply ice size in difference. We don't provide sample.
Q6. What is your aim?
A: And we would be happy that our customers using our brand Focusun across our world. We aim to give cutomer best products with reasonable price.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Contact us if you need more details on transparent block ice machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about block ice machine、block ice maker. If these products fail to match your need, please contact us and we would like to provide relevant information.
