Focusun 12.5tons/day Containerized Ice Block Machine / Block ice maker for Coastal region Fishing boats

Product Description

  General Introduction about Focusun :    Focusun is the Refrigeration Equipment manufacturer leading the peer industry. We mainly produce Flake ice machine, Tube Ice Machine, Block Ice Machine, Plate Ice Machine, Cube Ice Machine, water cooling equipment, Concrete cooling system, dynamic ice storage system, and all kinds of low temperature Ice storage room.     Quick Introduction about the block ice plant, Model: FIB-125S
Type: Brine system block ice plant
Power Supply: 220v/415V/50Hz/3P
Model No.: FIB-125S
Capacity: 12500KG/DAY
Cooling way: Water-cooling
Compressor: Bitzer
Refrigerant: R22/R404A

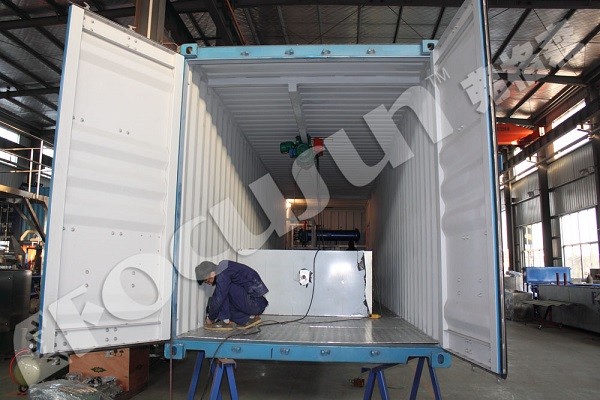

Dimension: ALL refrigeration system installed in the 40HQ ISO container

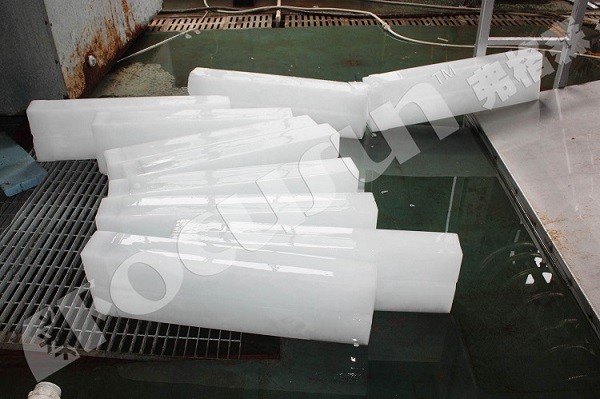

Brief introduction The production of block ice is a batch operation and, once emptied, the cans are refilled with water and replaced in the brine tank for a further freezing period. Whatever the capacity of the ice-maker for block ice production, a continuous labour force is required to manage all operations, particularly ice harvesting and handling.  All process could be completed within the container.
  Note: We have block ice plants of small, medium, large capacity, which ranges from 1t to 100t or more. All the specifications    can be personalized according to your requirments.   If you need more technical parameters, you
may visit our website to get more details about our ice machines :

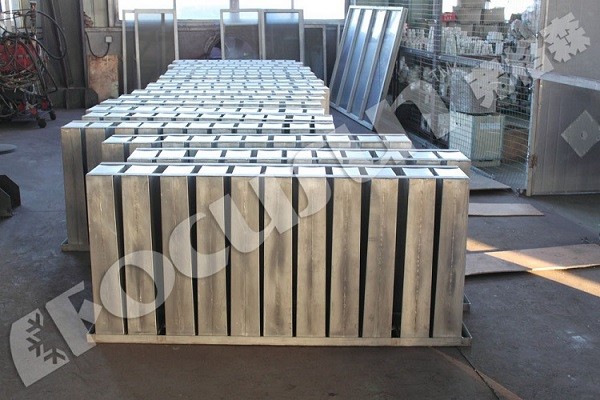

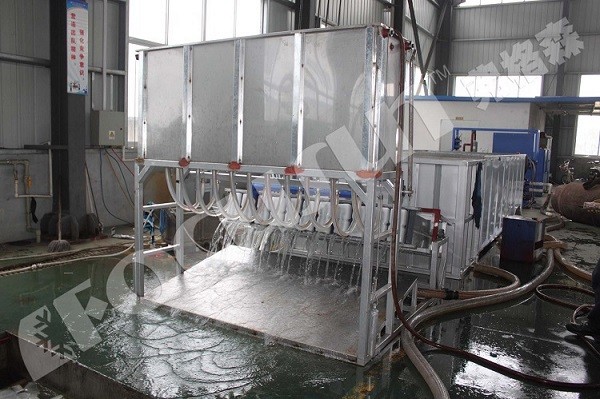

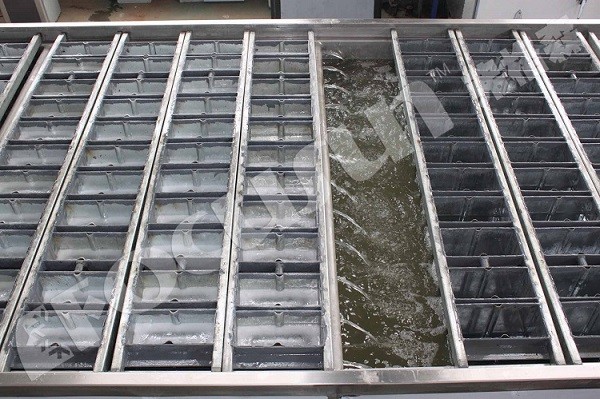

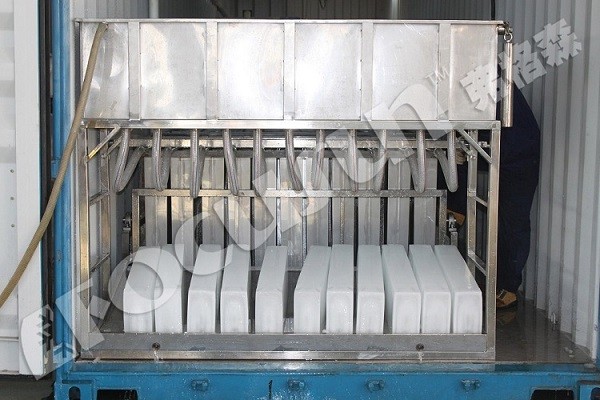

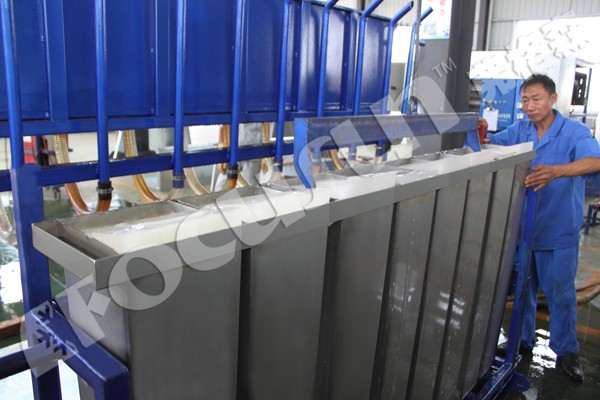

        The main advantages of Focusun block ice:   Comparing to other forms of ice, block ice is specially designed for tropical and hot areas, for middle east, African, etc. Stroage, handling and transport can all be simplified especially for remote areas transportation. Moreove, under the same condition, block ice has the longest storage period.   Application fields of block ice   Block ice machine is playing an important role in industrial field, agriculture, fishiery industry, especially used in seafood preservation, aquatic products processing, transportation, sea-fishing, food processing, chemical dyeing. And also temperature reducing and cooling in specific fields, ice sculpture( another kind of transparent ice),a nd human eating( produced by the direct refrigeration type)   Focusun brine block ice machine workflow:   1. Feeding water in ice moulds.   Lift up the lower seal plate to be fastened in the fixed handle and get the whole aluminum alloy plate sealed, and then add water in the ice cans to the standard water level.   2. Saltwater agitator makes the saltwater flow cyclically/ ice making process The refrigerant will have water-heat exchanger in the ice cans through refrigerant runner to lower the water temperature and in a certain time, all the water in the ice can will turn into block ice.   3. Water in Ice moulds. frozen./ ice frozen finished Saltwater in brine tank cooled with refrigeration system running and saltwater flow cycling, which makes the water in ice moulds frozen.   4. Melting block ice moulds.  When ice making is finished, open the lower seal plate manually and refrigeration system will change into doffing ice mode automatically in which HPHT refrigerant air will release heat in the refrigerant runner that will melt the surface of block ice in the ice cans.   5. Remove / harvest ice. Damp the ice block from ice can with dumper, then store block ice     Non-containerized brine system block ice machine:          Containerized brine system block ice machine:                            Dear friends, don't hesitate to send your inguiry if you are interested!  We would be very glad to be on service for you, as the most professional ice machine manufacturer with the biggest factory base in China, we are pleased to attach our best offer. We are definitely to contact you within 3 days after getting your inquiry.

Contact us if you need more details on block ice machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about ice block making machine、containerized ice block machine. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Block Ice Machine > Containerized brine cooling block ice maker
