2000kg block ice machine ( small ice blocks and big ice blocs)

Product Description

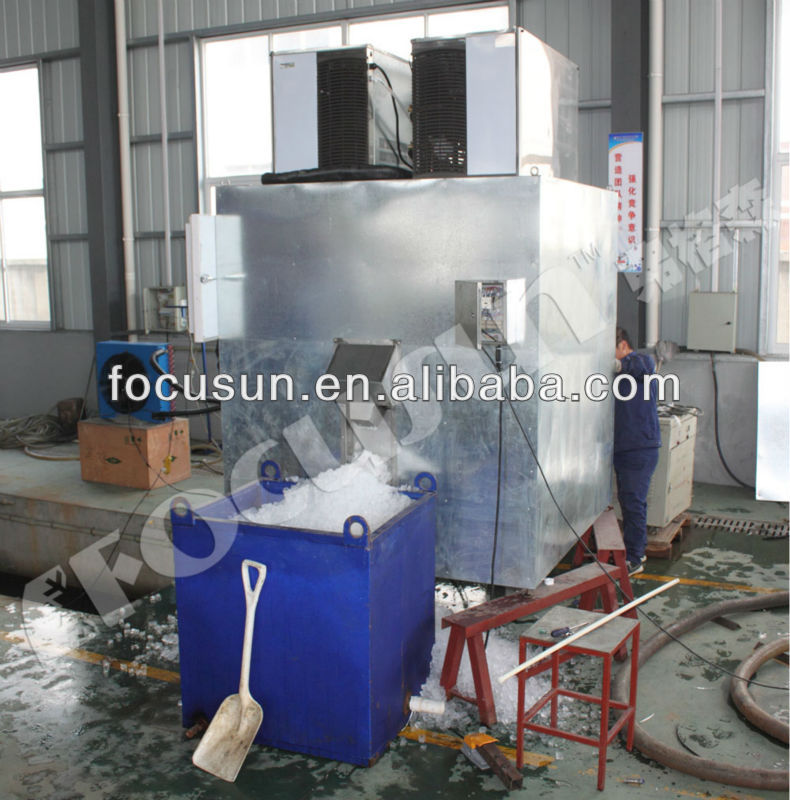

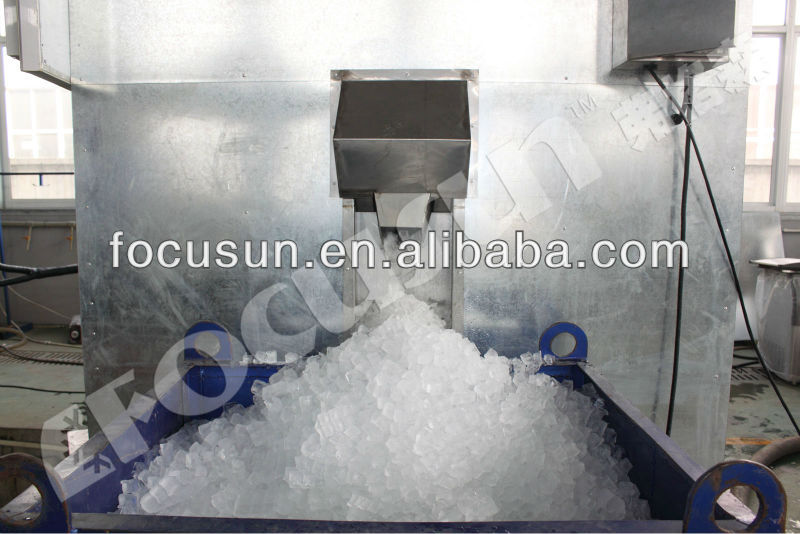

Cube Ice Machine/Ice block machine can make small ice blocks automatically. The capacity is 1,775kg in 24 hours.   Technical parameters of small Block Ice Machine

Model

FIM-3900G

Voltage supply

380V/3P/50Hz

Daily capacity

1,775kg/24hours

Ice storage amount(kg)

2000kg

Installed power

8,000W

Cooling method

Air cooling

Refrigerant

R22/R404a

Dimension(mm)

1800x1800x2766mm



    Product Description of small block ice machine   1. Reasonable design for the framework structure with stainless steel 304, save space, and easy to install;   2. Ice dropping automatically, No ice dropping auxiliary equipment, lower the error rate ice outgoing;   3. Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary.   4. Equipped with  PLC central program control, which allows multiple functions such as automatic machine start and shut down; ice stopping production when the ice bins are full, Automatic water making up;    5. Supply Power Form: 380V/3P/50Hz    6. Cooling System: Air cooling system   7.  foot-type design, ice can come out from ice outlet of ice storage bin.   Features of ice block machine   1. Structure is designed perfectly, space saving, convenient to install.
2. Save energy greatly, reduce the cost of water and power consumption.
3. Ice can drop automatically and evenly, no need other auxiliary fittings.
4. Automatic ice doffing, no need mannual grabing make sure the the ice is clean and sanitary. 5.Highly efficient, energy saving, safe and environmentally friendly and are quickly becoming the most popular choice for clients around the world.             We can also offer big block ice, big block ice machine. The big block ice is produced by direct freezing alluminum type block ice machine, the big block ice is eatable, the weight is 5kg or 10kg as optional.
Subject Unit Technical parameter
Power supply Voltage/Phase/Frequency 380V/3P/50Hz
Refrigerant   R22 or R404A
Capacity Kg/day 2160
Temperature Ambient temperature °C 35
Waterinlet temperature °C 20
Operating power Total running power Kw 8.16
Installment power Kw 10
Operating power of cold water pump Kw 0.12
Compressor Manufacturer   Bitzer
Refrigeration capacity Kw 15.63
Operating power Kw 6.94
Compressor COP/EER Kw/kw 2.25
Horse power Hp 12
Condenser Fan power Kw 1.1
Cooling way   Air cooling
Working time Ice making time h 7.5
Ice falling off time h 0.5
Dimension Weight of each block Kg/block 20
Size of block ice (L×W×H)(mm) 245×125×700
Size of ice maker (L×W×H)(mm) 2800×1400×2000
Size of water feeding pipe   3/4"
Operating weight of block ice maker Kg 1460
Water supply pressure requirement Bar 1

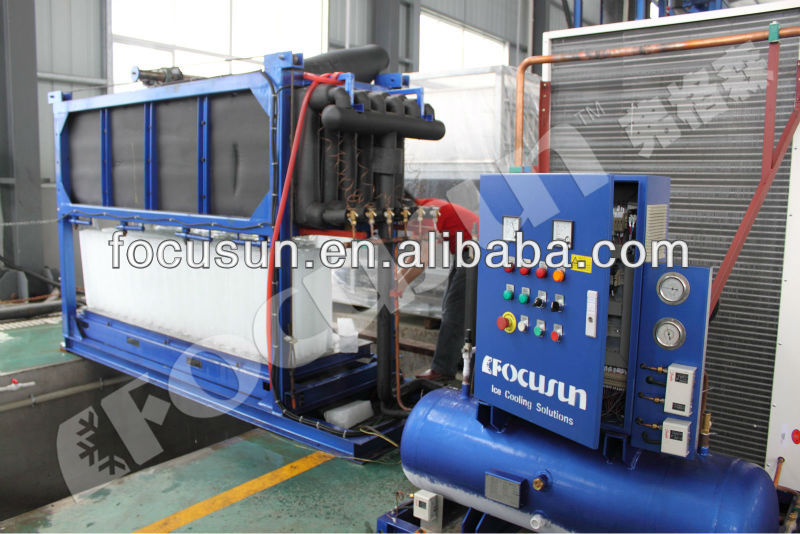

  Pictures of this big block ice machne:         Contact information: Contact person: Rucia Zhang Tel: 0086 021 51089946  Skype: icecooling013

Contact us if you need more details on ice block machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about block ice machine、ice block. If these products fail to match your need, please contact us and we would like to provide relevant information.
