Good performance high quality ice block plant with best price
Our main products include all kinds of ice making machine,cold storage, Vacuum cooler ,Snow making machine,Mine cooling system,Concrete cooling system,chemical reactor cooling system and so on.
Product Description Focusun utilizes both direct refrigeration technology and brine refrigeration technology to meet your different requirements. The standard weight & size of block ice Focusun produces are listed in the form below. Focusun can also customize the size of the block ice to meet your needs and requirements.

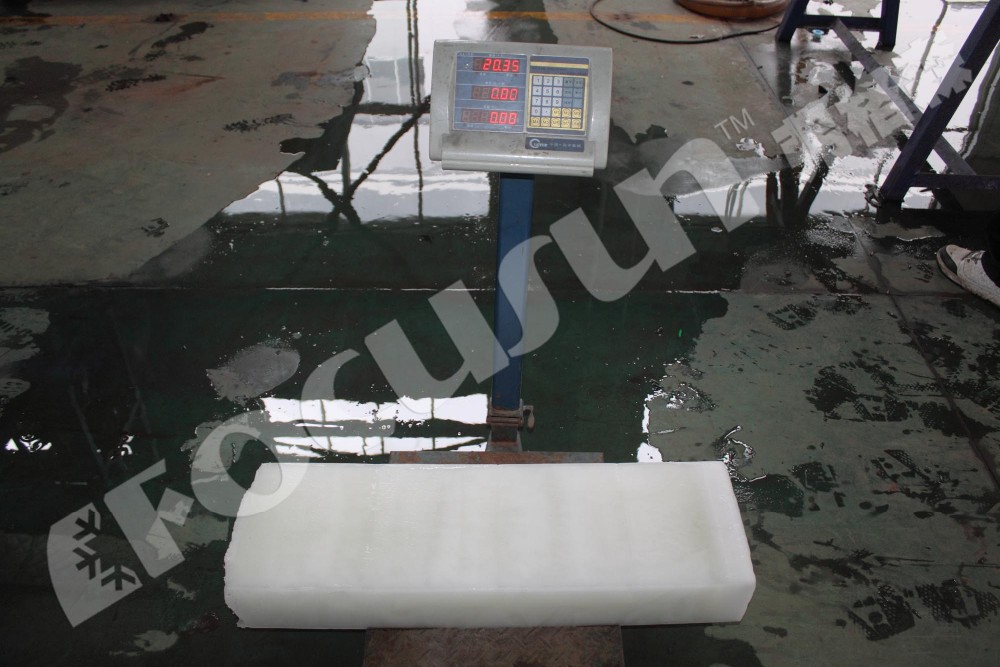

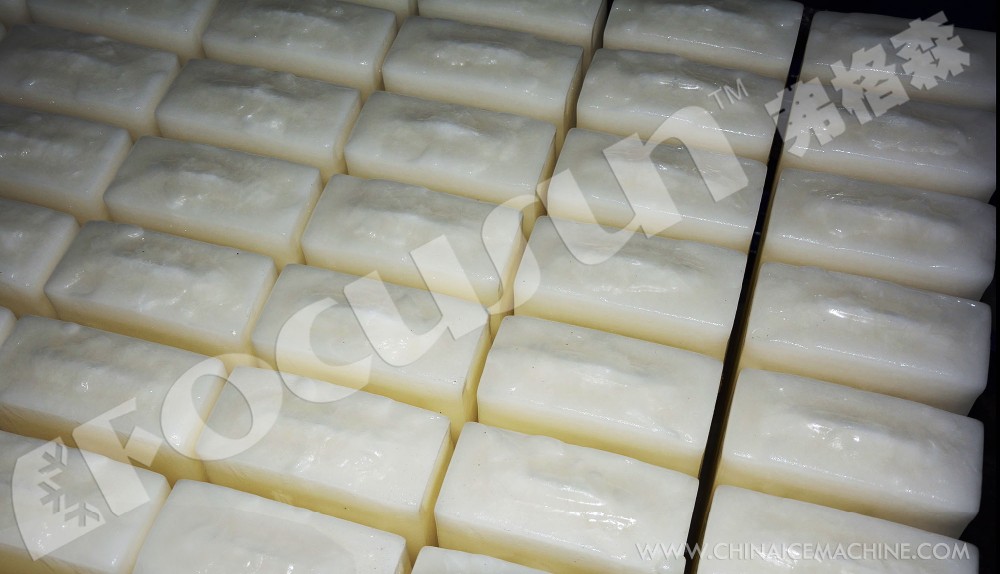

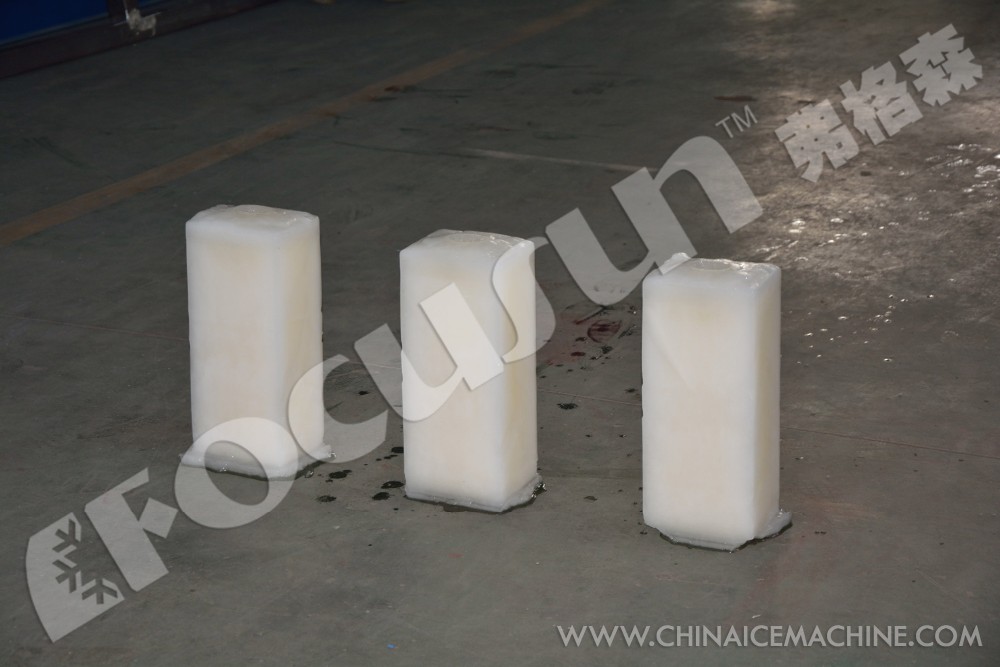

Block ice has a large dimension but has small contact area so it does not melt easily. It is usually cut into different pieces for different uses in ice sculpture, sea shipping and fish vessels. The small pieces of block ice can be also be used for various purposes. There will be a little loss because the ice will thaw partly when crushed. Focusun offers both transparent and milky white ice for your preference.

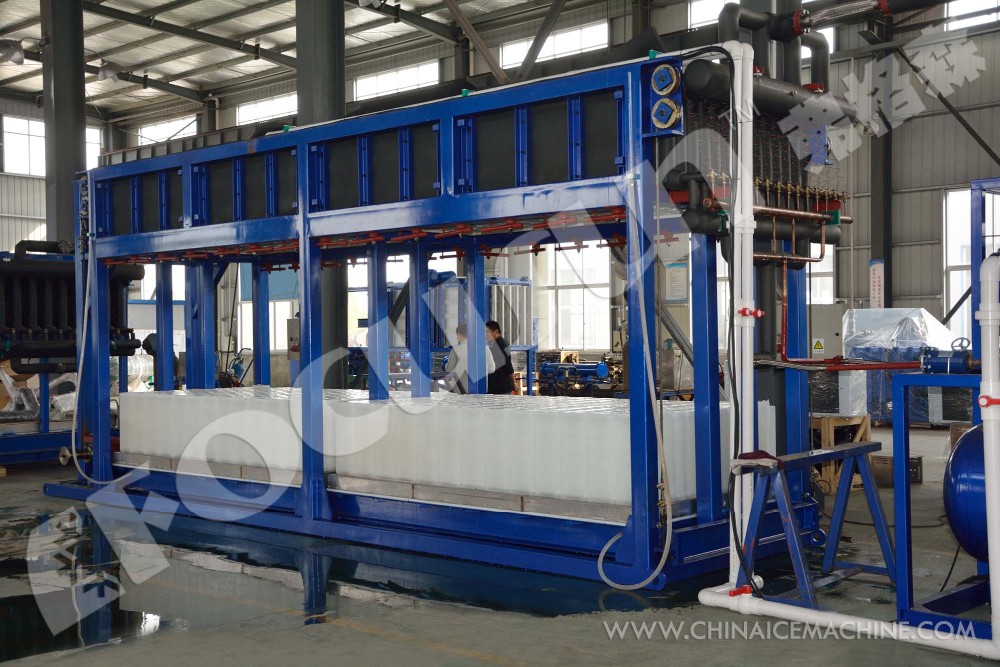

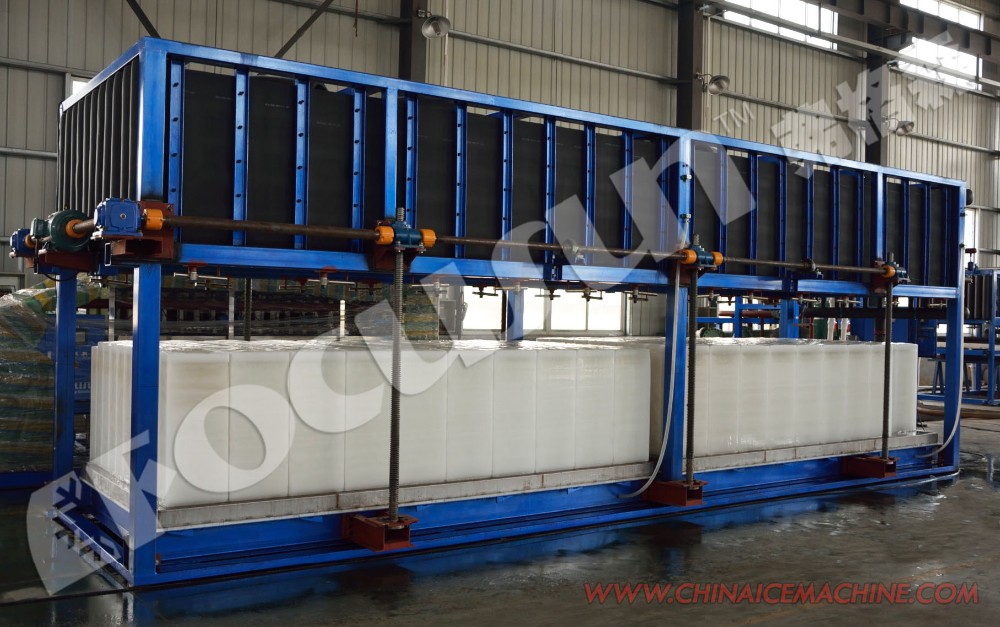

Aluminum direct refrigeration Block Ice Machine is also called direct refrigeration block ice machine, direct fast cooling ice machine (block ice machine). The principle is to use the specially designed cooling channel of the ice making box to carry on the circulation of the low temperature refrigerant, so as to rapidly cool the water in the box and realize rapid ice making.
Direct refrigeration block ice machine needs no brine tank, hoist, ice thawing tank and the water doe not need to add industrial salt. There is no need to change ice buckets and labors does not need 24 hours working time.
By overall installation,all equipments are installed on a steel frame,which is easy for containerized transportation. Easy installation. With power supplied, the machine can be put into operate immediately.
The standard direct block ice machine standard power supply is 380V / 3P / 50Hz, according to the actual situation to change the electric system, but must be specified when ordering.

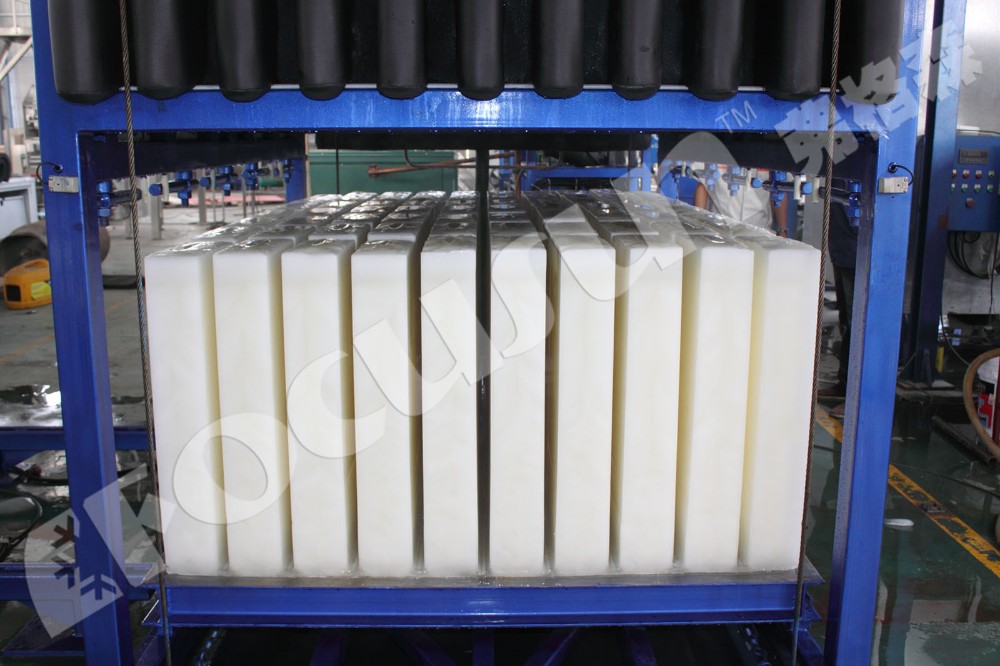

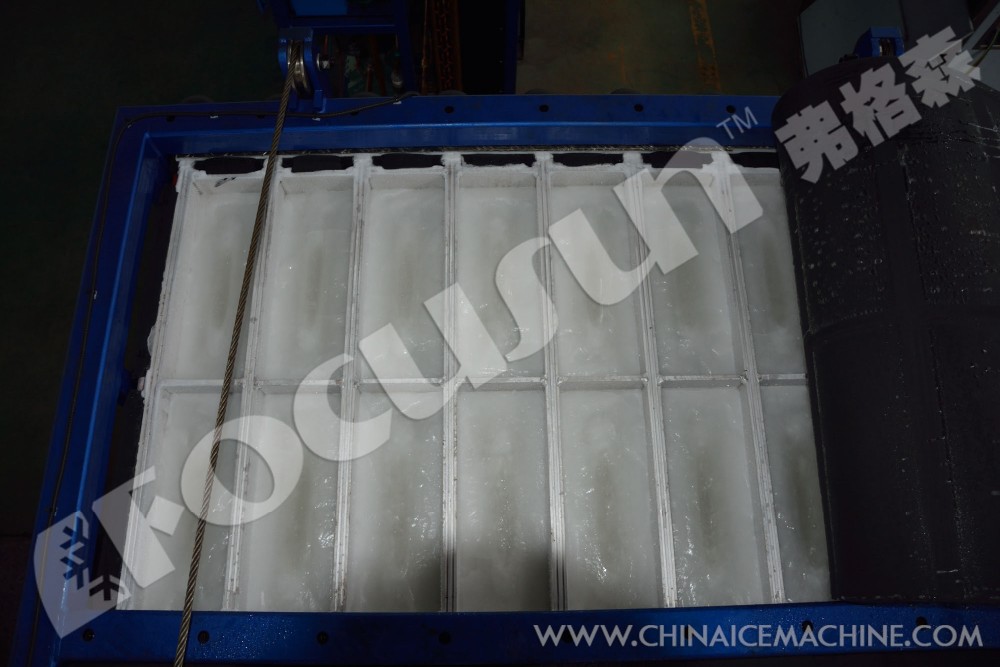

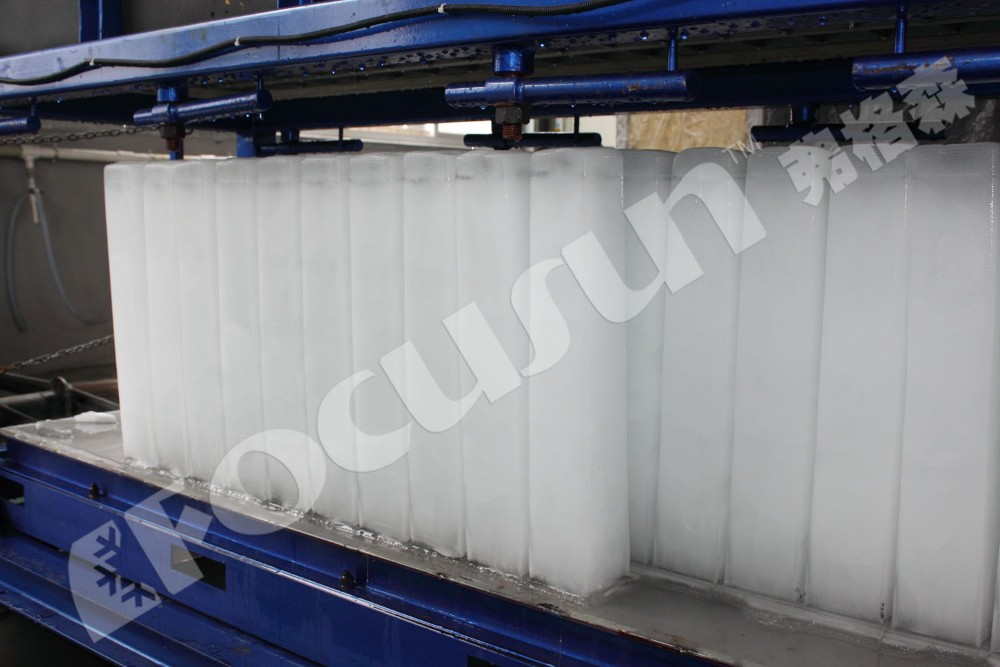

Detailed Images Working Principle Water will be added automatically to ice cans and directly exchange heat with the refrigerant. When ice making is finished,the refrigeration system will change into ice doffing mode automatically in which HPHT refrigerant air will release heat to melt the surface of block ice.All the ice blocks will fall down in 25 mins.
Features: - Adopt dense special formula aluminum alloy as Evaporator , improve heat exchange effect, real rust prevention and corrosion protection, guarantee service life
- The water contact between the water tank and the water is made of aluminium plate, and the material is not rusty
- Thermal defluorination. In the inlet water temperature of 20 degrees, water temperature, the ice doffing time is 23 minutes, fast and energy saving
- The overall modular equipment makes transportation, moving, field installation very simple
- According to different ice size, we are tailor-made for customers for each direct refrigeration block ice machine
- The direct ice block ice machine can be made into a container type container, and the ice making capacity of 20 feet container is 6 tons / day, and the maximum ice making capacity of the 40 foot container is 20 tons / day
- Customers can choose the automatic ice transfer device which can be used connected to the power supply. Ice can be automatically transported to the outside of the machine, greatly improving the efficiency of artificial ice moving.
Related Products Plate Ice Machine
Tube Ice Machine
Cube Ice Machine
Packing & Delivery Packing Details. The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Service Pre-Sales Service. * Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service. * Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Focusun has devoted itself into offering the most advanced complete plant, the most reliable design plan, and the most thoughtful after sale service, consequently helping our customers to create remarkable profits. Focusun's eternal faith is to continuously provide high quality products and distinguished sales service.
Focusun respects customers and understand customers with empathy. We try our best to consider all for our customers rather than only our own benefit. Focusun is all ears for customers' advice and suggestions which will be highly appreciated as the important way to improve our products and service.
Focusun pursues high efficient work and service which will save a lot of valuable time of our customers. Focusun's fast-response mechanism can ensure the most efficient service for our customers internationally.
Certifications FAQ Q1. What is your terms of packing?
A: Generally, we pack our goods in platict films or cartons, normally a FCL shipping.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance. You're welcome to see the test of the machines for days.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 45 to 60 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: No, all the machines are customized according to power supply ice size in difference. We don't provide sample.
Q6. What is your aim?
A: And we would be happy that our customers using our brand Focusun across our world. We aim to give cutomer best products with reasonable price.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Contact us if you need more details on block ice machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about automatic block ice machine、Direct cooling block ice machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
