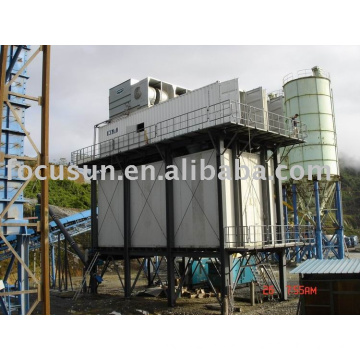

Concrete Flake Ice Plant, 60tons, for cooling concrete

Product Description

  FIM-600K Flake Ice Machine 60tons/24hours for cooling concrete       Description:   Flake ice plant , Flake-Style, water-cooled, 60tons. production/24 hours, Automatic monitoring system, compacted style flake ice, stainless steel finish.   Advantages   Perfect design based on the whole large-scale project for customer; Adopt reasonable cooling type according to the locate situation; Combining with cooling water, the Flake ice machine can have better performance; Ice making and dropping in high Speed with lower power consumed; Steel surfacing board treated specially with oil-resistance;   Flake Size Available Flake Ice Thickness Range: 1.5mm to 2.2mm   Application: Flake Ice Makers for Concrete mixing industry, Aquaculture industry, Chemical industry, Slaughtering industry, Large seafood processing mill, etc.   Specifications:
Subject Unit Technical parameter
Power supply Voltage/Phase/Frequency 380V/3P/50Hz
Refrigerant   R22 or R404A
Capacity Kg/day 60000
Cooling way   Water cooling
Temperature Ambient temperature °C 35
Waterinlet temperature °C 20
Compressor Manufacturer   GRASSO
Refrigeration capacity Kw 350
Total running power Kw 195
Compressor COP/EER Kw/kw 1.8
Horse power Hp 350×1set
Operating power Total running power Kw 214.9
Installment power Kw 280
Operating power of reducer Kw 3.7
Operating power of cold water pump Kw 1.5
Cooling water pump Kw 11
Fan of cooling tower Kw 3.7
Diemnsion Size of ice maker (L×W×H)(mm) Unit:3400×2200×2200
Evaporator:3000×2500×4500
Size of cooling tower (O.D.×H)(mm) Φ3770×3490
Size of water feeding pipes of cooling tower   1"
Size of cooling water pipes   6"
Size of water feeding pipe   1"
Size of ice outlet mm Φ2160
Weight of unit Operating weight of flake ice maker Kg Unit:4500
Evaporator:6500
Operating weight of cooling tower Kg 3640
Water supply pressure requirement Bar 1.5


Contact us if you need more details on concrete flake ice plant. We are ready to answer your questions on packaging, logistics, certification or any other aspects about concrete machine、concrete cooling. If these products fail to match your need, please contact us and we would like to provide relevant information.
