Best price fresh water flake ice machine 12T

Product Description

Product Description Introduction When the Flake ice machine runs, ice skate, water sprinkling pan, principle axis and low water pan are driven by decelerator and run slowly counterclockwise. The water flows into the water distributive pan from the water inlet of Evaporator , and then sprinkles over on the ice freezing surface evenly through water sprinkler, becoming a water film. The water film has a heat exchange with the refrigerant in the refrigerant runner and its temperature quickly decreases till forming of a layer of thin ice on ice freezing surface. Under the extrusion of ice skate, the thin ice layer turns into ice flake and then falls into ice storage bin from the ice outlet. The partial unfrozen water then returns to the cold water tank through water receiving plate from water return outlet.

Flake ice introduction: Irregular ice flakes with size about 40×40 mm and thickness around 1.5-2.5 mm.  And this type of ice machine has advantages of: 1.The thin ice can be directly used for stirring and mixing refrigerated materials; 2. No acute edges and corners so it will not damage the surface of the cooled object; 3. Large contact area and fast cooling speed;
4. Easy to crush and mold.
Product Application Supermarket o restaurant (fresh) chilling of food in the hotel.
Detailed Images

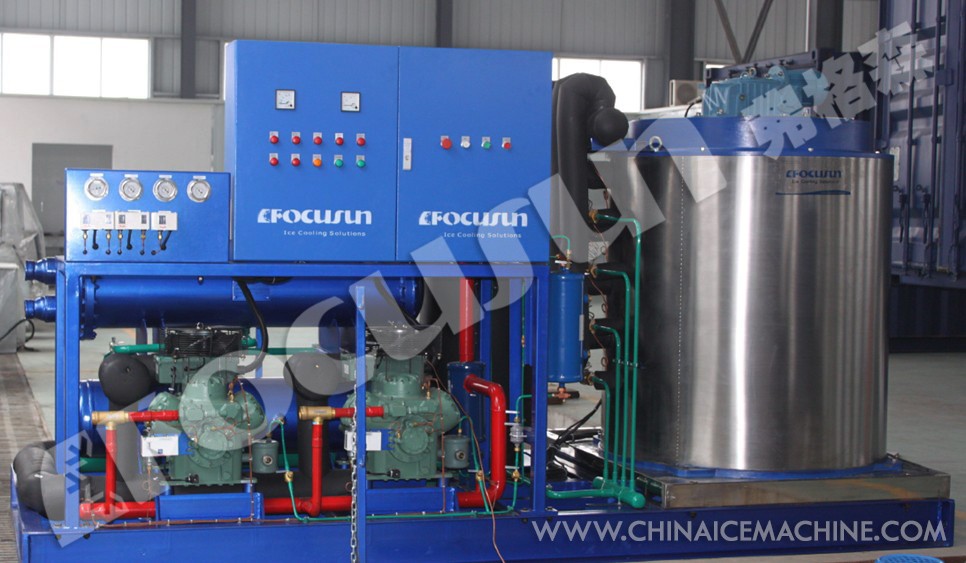

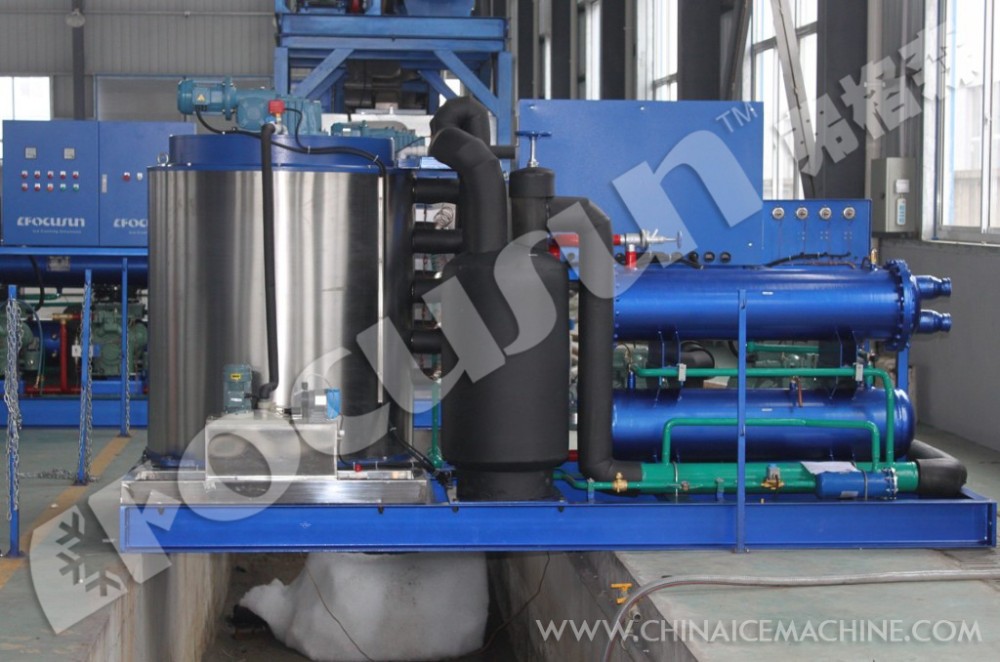

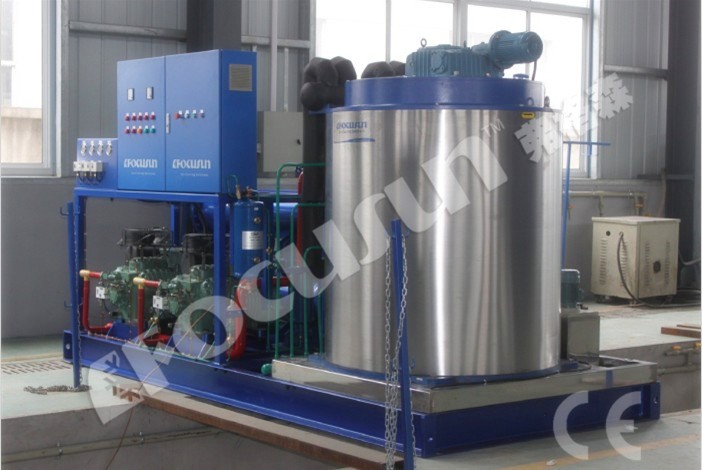

Machine Composition

Parts: flake ice machine
Material: fresh water or seawater Capacity: 12 T/days Cooling:  air cooling
We can produce with different capacity and type of cooling according to of state of installation and the request of customer.
Details Compressor: Bitzer
Refrigerant: R22 or R404A
Ambient temperature: 35℃
Water supply temperature: 20℃
Cooling way: air cooling
Power supply : 380V/3P/50Hz
Pressure valve: Danfoss
Features 1. Internally-scraping ice skate can help reduce energy consumption and prevent leakage of refrigerant;
2. Stainless steel materials, advanced processing equipment and heat treatment ensure the best heat transfer efficiency;
3. The design of the large water receiving plate can prevent water leaking at the bottom of drum;
4. Photoelectric switch is directly installed in the bottom of evaporator;
5. Direct liquid feeding and dry evaporation -- simple, safe and reliable control;
6. Integrated modular equipment installation is convenient for maintenance.
Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products Flake Ice Machine 91.8% Response Rate Block Ice Machine 91.8% Response Rate Cube Ice Machine 91.8% Response Rate Our Company Focusun Refrigeration Focusun dedicates itself into researching and developing advanced refrigeration technology. We mainly design and manufacture Tube Ice Machine, block ice machine, flake ice machine, cube ice machine, Plate Ice Machine, Slurry Ice Machine, Water chiller, Vacuum cooler , Concrete cooling system, automatic ice storage system, dynamic ice storage system, snow making system, ice crusher and all kinds of cold rooms.
Our Service Pre-Sales Service * Inquiry and consulting support.  * Sample testing support.  * View our Factory. After-Sales Service
* Training how to install the machine, training how to use the machine.  * Engineers available to service machinery overseas. Certifications

Contact us if you need more details on flake ice machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about flake ice maker、flake ice making machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
