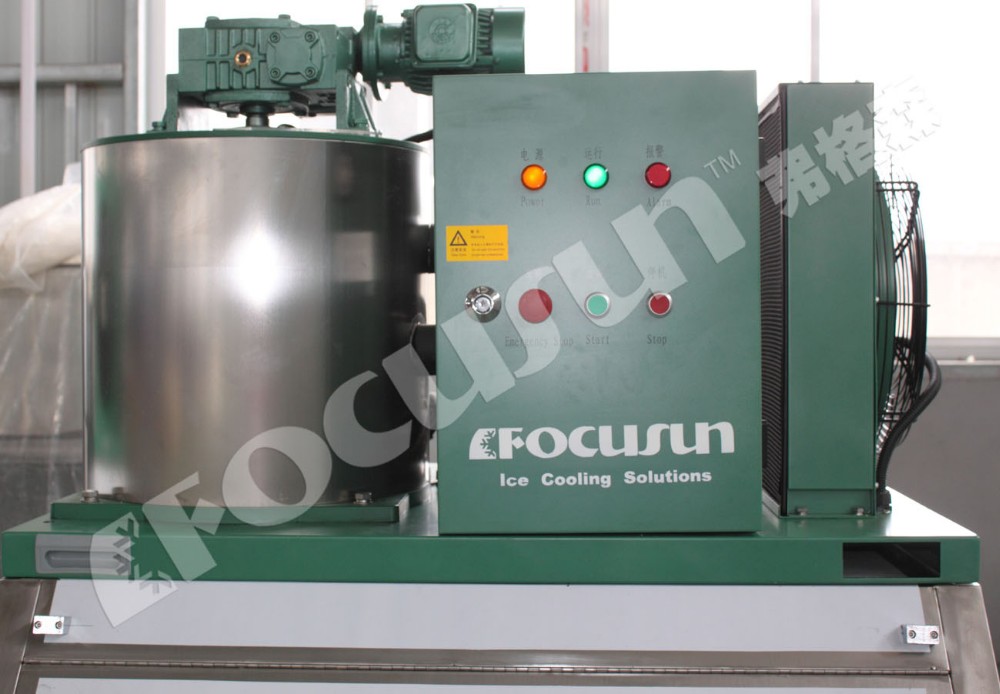

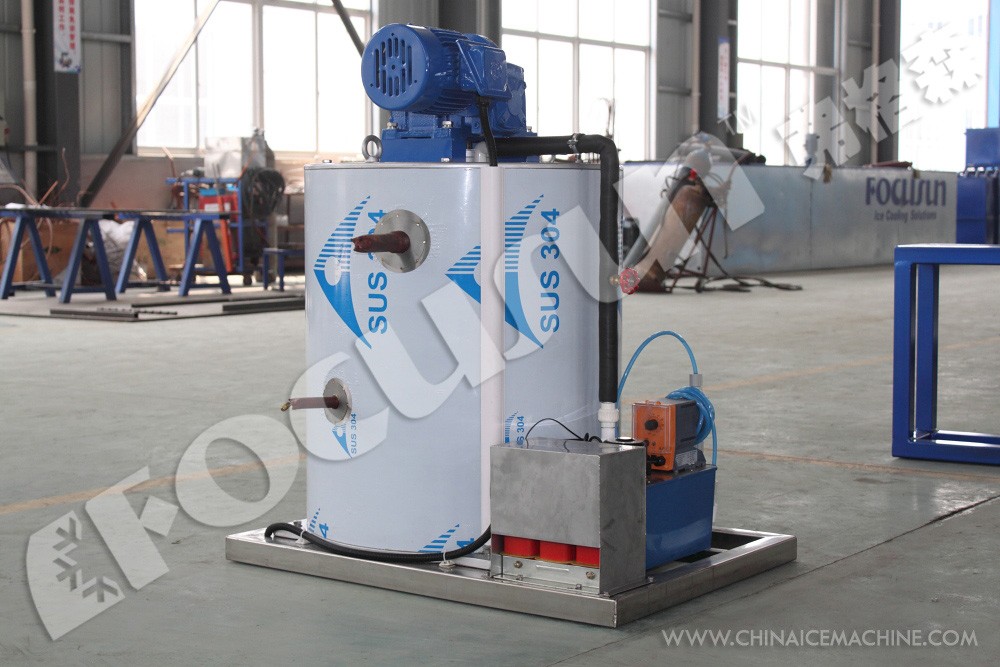

2020 small capacity 500kg/24hr flake ice machine for coffee shop use

Product Description

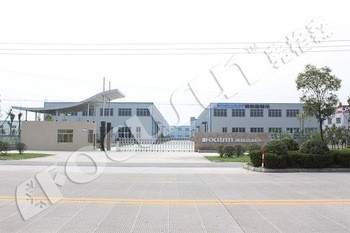

Our Company FOCUSUN is a pioneer in the fields of ice making and vacuum pre-cooling. We specialized in designing and manufacturing all kinds of high quality ice machines and cooling systems. With the technology and experience accumulated over the years, we use advanced technology of refrigeration and mechanical transmisson to provide quality service to more than 11,000 professional clients in 56 countries around the world.
Product Description Breif Introduction of Flake ice manchine.
it usually varied from 0.5 ton to 60t . other specifications need to be customerized.
there are two types , one is common type fake ice machine used for fresh water. the other is marine seawater Flake ice machine used for ships. the marine seawater flake ice machine is covered with stainless steel both inside and outside so that can effectively anti corrode.
Standard power supply for small capacity ice flake machine is 380V/3P/50Hz and it also can be customized to meet different electrical requirements.

SPECIFICATIONS of other small capacity flake ice machine for your references
mode
daily capacity
electric consumption
operating weight
size
FIF-05A
0.5t
2.56kw
208kg
1200*740*590mm
FIF-08A
0.8t
4.43kw
235kg
1200*740*650mm
FIF-10A
1t
5.16kw
380kg
1200*740*780mm
FIF-12A
1.2t
6.63kw
420kg
1400*960*780mm
FIF-15A
1.5t
7.72kw
450kg
1560*1200*880mm
FIF-20A
2t
11.17kw
480kg
1560*1200*960mm
FIF-25A
2.5t
12.62kw
550kg
1560*1200*1150mm
FIF-30A
3t
14.35kw
550kg
1560*1200*1150mm

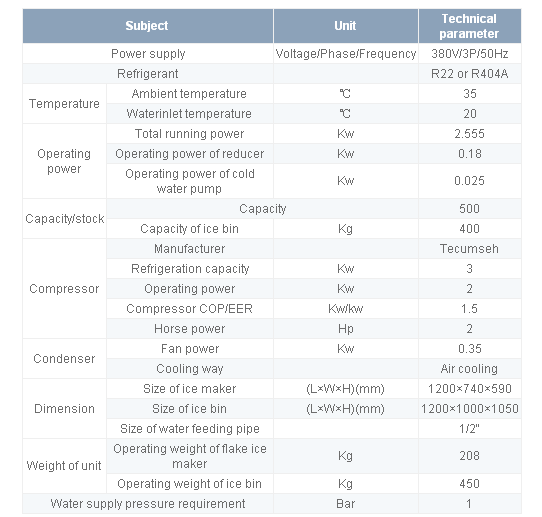

Technical parameters of 500kg flake ice machine Machine Features 1. Internally-scraping ice skate can help reduce energy consumption and prevent leakage of refrigerant.

2. Stainless steel materials, advanced processing equipment and heat treatment processing ensure the best heat transfer efficiency.

3. The design of large water receiving plate can prevent water leaking at the bottom of Evaporator.

4. Photoeletric switch is directly installed at the bottom of evaporator to realize automatic control of full ice.

5. Direct liquid feeding and dry evaporation, simple & safe to control.

6. Integrated modular design, convenient to install and maintain.

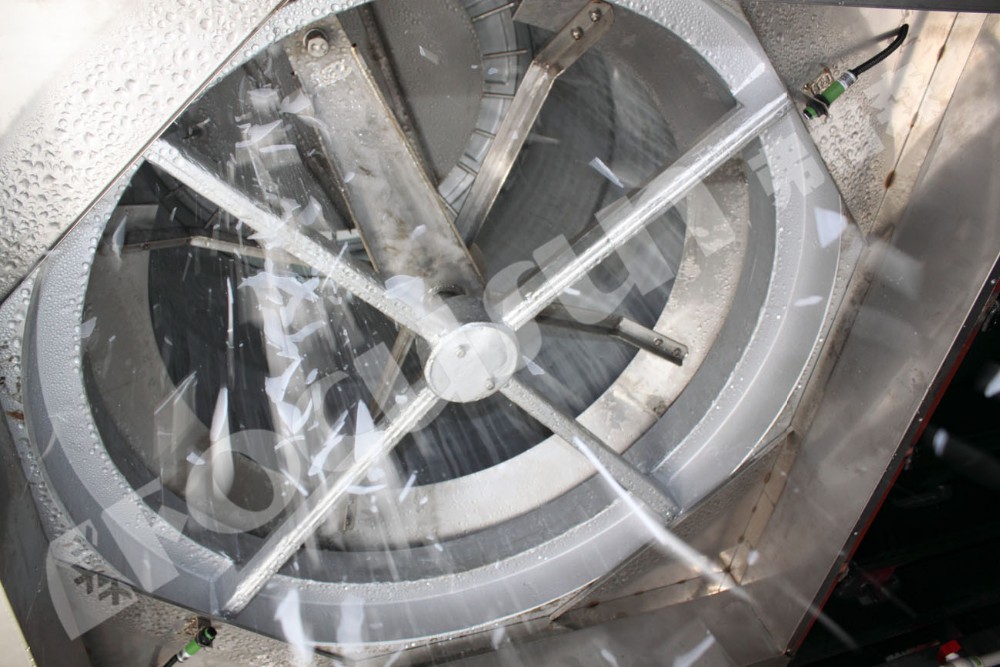

Certifications Detailed Images Flake ice evaporator The internal structure of the evaporator is specially designed to improve the heat-exchange efficiency and to keep the loop unblocked with special processing technology. The internally-scraping ice-making mode has been adopted, which reduces the loss of energy and avoids the leakage of refrigerant.
Main Features of flake ice: 1.The thin ice can be directly used for stirring and mixing refrigerated materials;
2.No acute edges and corners so it will not damage the surface of the cooled object;
3.Large contact area and fast cooling speed;
4.Easy to crush and mold.

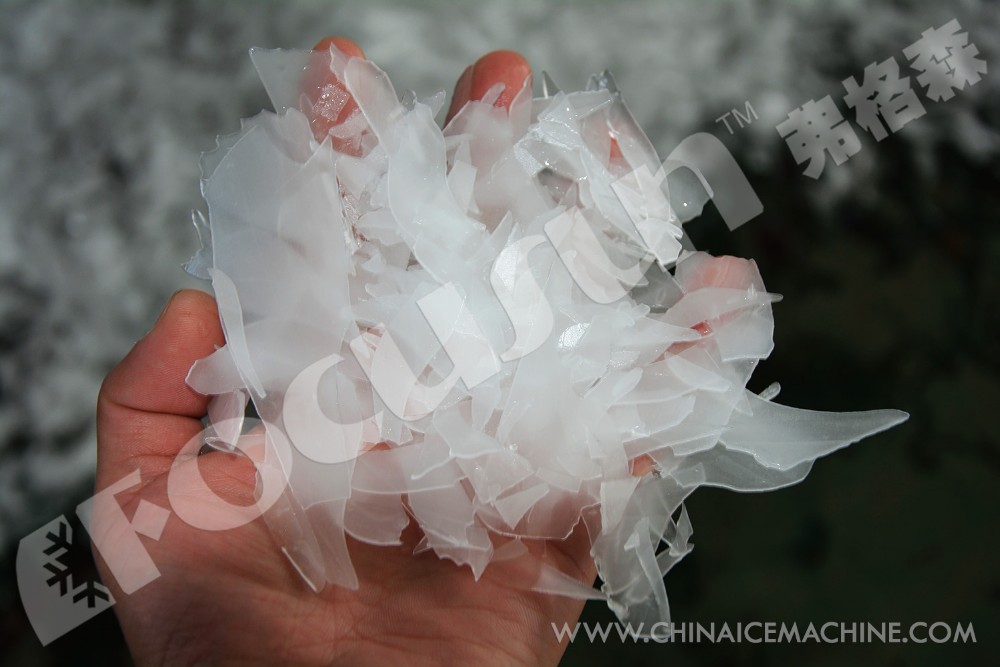

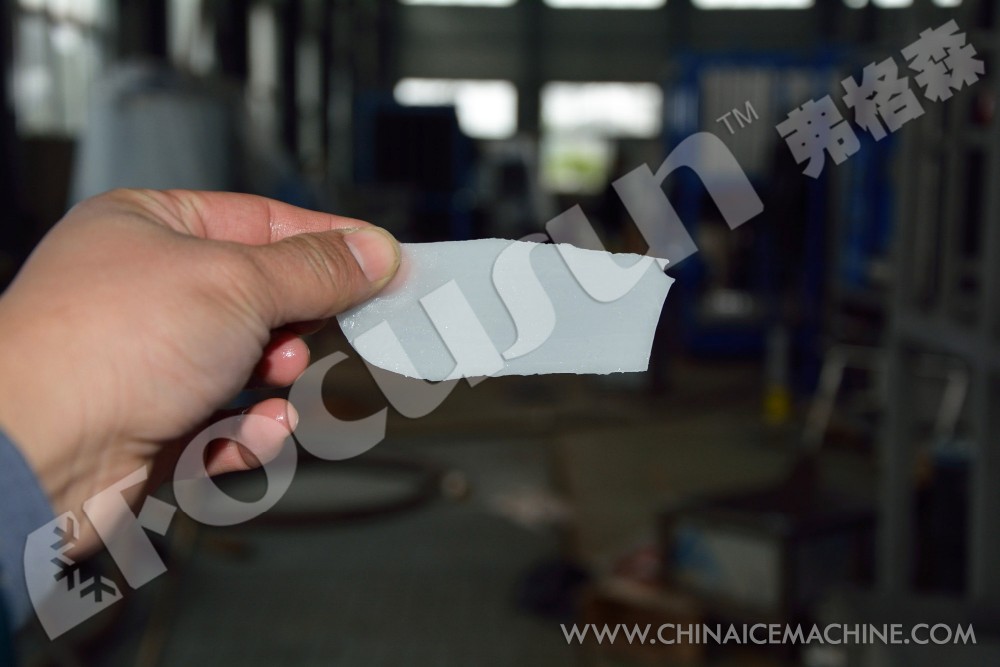

Flake ice: Irregular ice flakes with size about 40×40mm and thickness around 1.5-2.5mm.


Application fields:
Concrete mixing plants, chemical plants, mine cooling, skiing ground, medicine, aquatic food and so on
We have small/middle/large capacity flake ice machine. you can decide according to your demand. if your ice can't be quickly sold or used, we can also provide you a suitable Ice storage room. welcome to click on our official website https://focusun.en.alibaba.com/?spm=a2700.8304367.0.0.nQRwJ5for more information. if you have any interest, don't be hesitate to let us know your request.

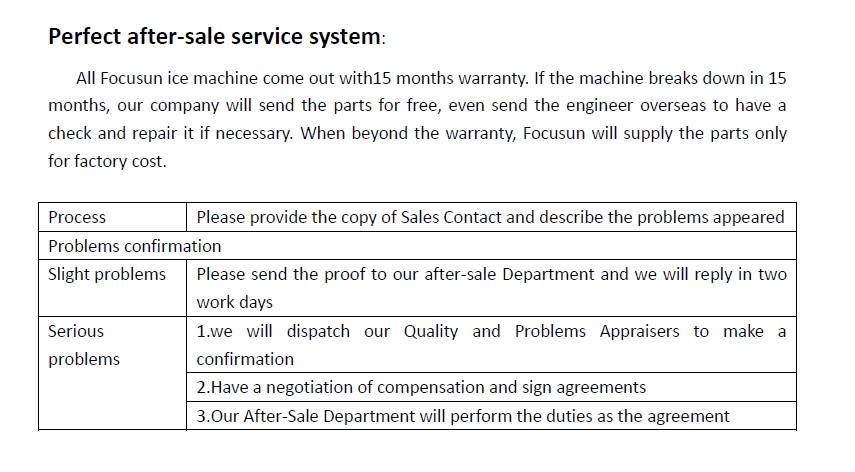

Our Service Packing & Delivery
Packaging
Size
1500*1000*800mm
Weight
500kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Other Products Show FAQ Q1. What is your terms of packing?
A: Generally, we pack our goods in platict films or cartons, normally a FCL shipping.

Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance. You're welcome to see the test of the machines for days.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?
A: Generally, it will take 45 to 60 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: No, all the machines are customized according to power supply ice size in difference. We don't provide sample.

Q6. What is your aim?
A: And we would be happy that our customers using our brand Focusun across our world. We aim to give cutomer best products with reasonable price.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Contact us if you need more details on flake ice machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about flake ice maker、flake ice plant. If these products fail to match your need, please contact us and we would like to provide relevant information.
