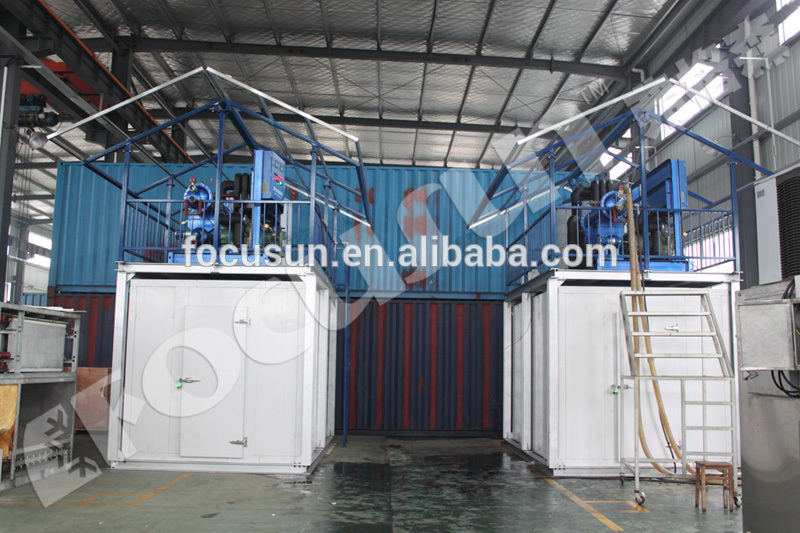

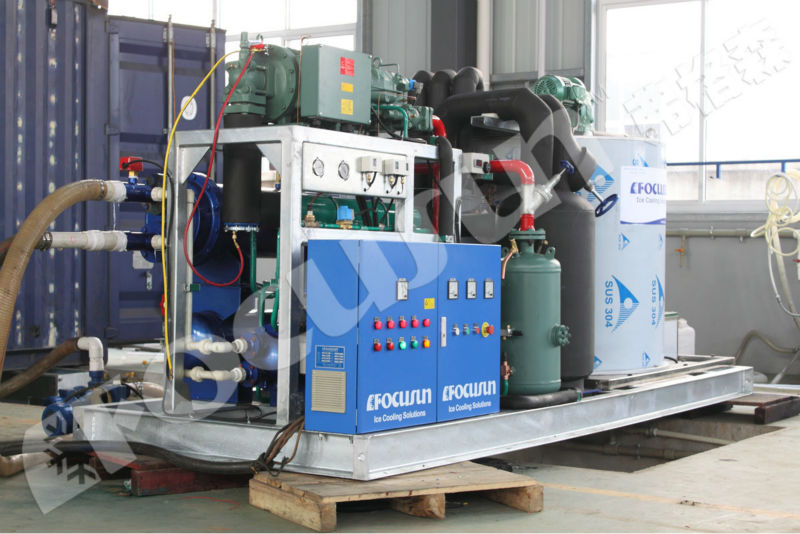

FOCUSUN 30 tons containerized flake ice machine for fishing/meat/seaweed

Product Description

  FIF-300K, 30TONS/24hrs Flake Ice Machine     FOCUSUN  Flake Ice Maker:     Noted: we also have other models of which daily output: 500kg/24hs~60000kg/24hs,You can choose the different types to meet your request.   Specification:   1).Flake Thickness : 1.5-2.0MM 2).Power supply: 3P/380V/50HZ 3).Fully Automatic and safe operation system 4). Daily capacity: 10tons flake ice in 24hrs 5). Cooling type: air cooled or water cooled
6). Refrigerant: R22/R404A 7). High quality and high capacity but competitive price.       FOCUSUN ice flake machine plays tremendous roles in marine fisheries and aquatic products processing, chemical plant. It's a really useful industrial freezer.   1. Flake ice: Irregular ice flakes with size about 40×40mm and thickness around 1.5-2.5mm.   2. Features of Flake Ice Making Machine: The thin ice can be directly used for stirring and mixing refrigerated materials;
No acute edges and corners so it will not damage the surface of the cooled object;
Large contact area and fast cooling speed;
Easy to crush and mold.   3. Application fields of Flake Ice Making Machine: Concrete mixing plants, chemical plants, mine cooling, skiing ground, medicine, aquatic food, supermarket and so on.   4. Ice making principle of Flake Ice Making Machine:   Ice skate, water sprinkling pan, principle axis and low water pan are driven by decelerator and run slowly counterclockwise. The water flows into the water distributive pan from the water inlet of Evaporator, and then sprinkles over on the ice freezing surface evenly through water sprinkler, becoming a water film. The water film has a heat exchange with the refrigerant in the refrigerant runner and its temperature quickly decreases till forming of a layer of thin ice on ice freezing surface. Under the extrusion of ice skate, the thin ice layer turns into ice flake and then falls into ice storage bin from the ice outlet. The partial unfrozen water then returns to the cold water tank through water receiving plate from water return outlet.       5. Flake Ice Making Machine's features:
Internally-scraping ice skate can help reduce energy consumption and prevent leakage of refrigerant
Stainless steel materials, advanced processing equipment and heat treatment ensure the best heat transfer efficiency
The design of the large water receiving plate can prevent water leaking at the bottom of drum.
Photoelectric switch is directly installed in the bottom of evaporator
Direct liquid feeding and dry evaporation —— simple, safe and reliable control.
Integrated modular equipment installation is convenient for maintenance   Flake ice machine Application   1) Fishing--Sea water flake ice machine can make ice directly from the sea water, ice can be used in fast cooling of fish and other sea products. Fishing industry is the largest application field of flake ice machine.   2) Sea food process--Flake ice can lower the temperature of cleaning water and sea products, therefore it resists the growth of bacteria and keeps the sea food fresh.   3) Bakery--During the mixing of flour and milk, can prevent the flour from self raising by adding flake ice.   4) Poultry--Huge amount of heat will be generated in food processing, flake ice can effectively cool the meat and water air, also supply moisture for the products at the meantime.   5) Vegetables distribution and fresh-keeping--Now days, in order to guarantee the safety of food, such as vegetables, fruit and meat, more and more physical methods of storing and transporting are being adopted. Flake ice has a fast cooling effect so as to ensure the applied object will not be damaged by bacteria.   6) Medicine--In most cases of biosynthesis and chemosynthesis, flake ice is used to control the reaction rate and maintain the liveness . Flake ice is sanitary, clean with rapid temperature reduction effect. It is the most ideal temperature-reducing carrier.   7) Concrete Cooling--Flake ice is used as the direct source of water in concrete cooling process, more than 80% in weight. It is a perfect media of temperature controlling, can achieve effective and controllable mixing effect. Concrete will not crack if is been mixed and poured in constant and low temperature. Flake ice is widely used in the large projects such as high standard express way, bridge, hydro-plant and nuclear power plant.                        Turnkey Solutions As the most professional ice making plant supplier in China, Focusun can systematically provide customers with a series of comprehensive ice-making solutions. Once you have the idea of building an ice-making project, if necessary, our experienced engineers will provide you with professional projects proposals. FOCUSUN Generator In many countries around the world, electricity use is limited due to many reasons such as the electricity price, voltage stability, the continuity of power supply and other factors. As a result, the diesel generator is your best choice. Choosing a suitable diesel generator as your power source for your ice maker, or as a standby power equipment is the sufficient condition to ensure the effective and quick start of a ice-making project.   Our technical engineers are willing to recommend the suitable diesel generator for you according to your ice-making capacity.        Company Information       Our Services

Perfect service system:


All Focusun ice machines come out with 15 months full warranty. If the machine breaks down in 15 months, Focusun will send the parts for free, even send the technician over if situation needed. When beyond the warranty, Focusun will supply the parts and service only for factory cost.

Process: Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem: Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
A We will dispatch our Quality and Problems Appraisers to make a confirmation.
B Have a negotiation of the compensation and sign agreements
C Our After-Sales Department will perform the duties as the agreement

  Please send us your inquiry, we will definitely deal with your inquiry within 24 hours. Don't hesitate to contact us!

Contact us if you need more details on flake ice machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about flake ice machine for sale、flake ice making machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
