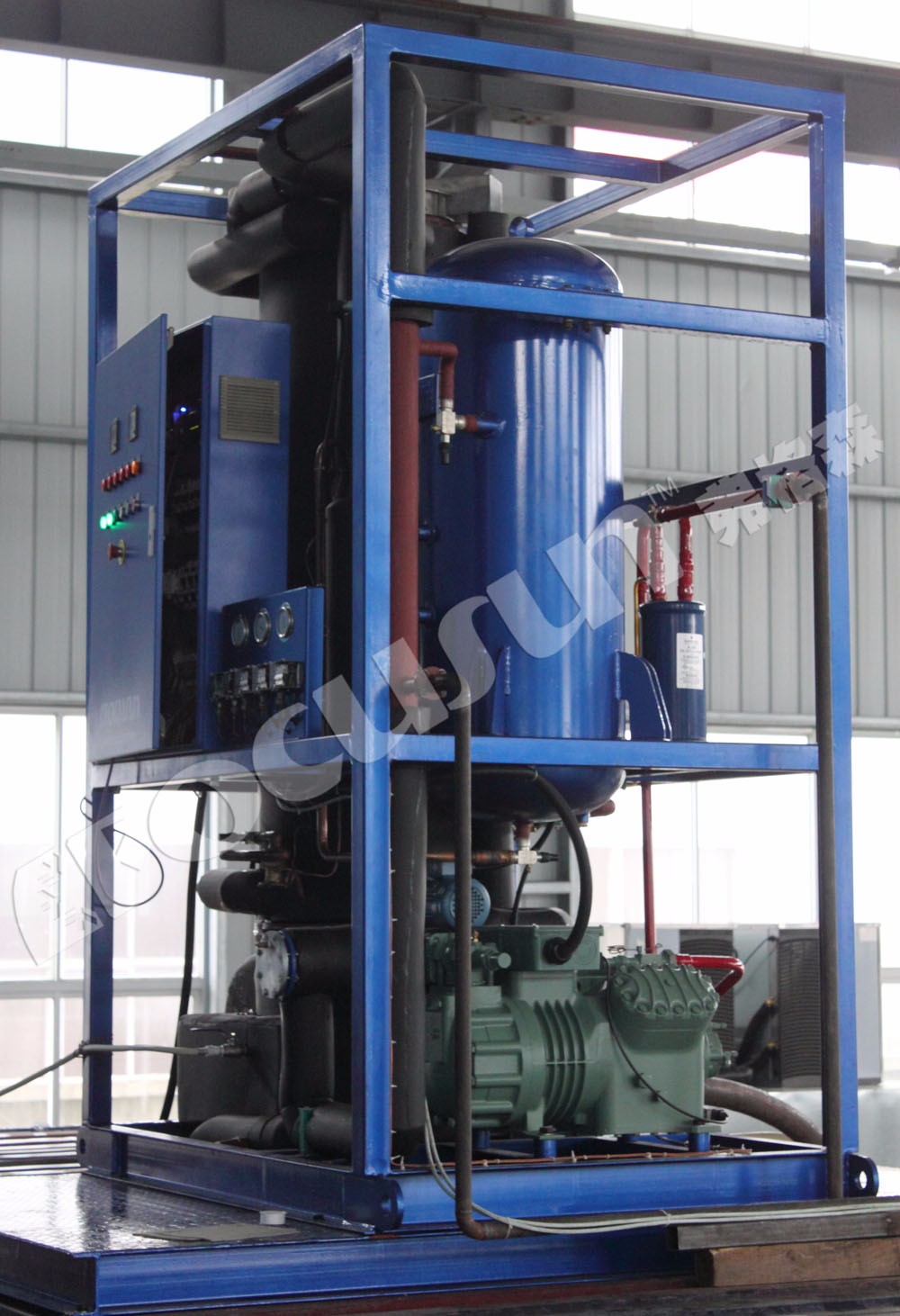

2020 New Tube ice machine and fully automatic ice packing machine

Product Description

Company Information FOCUSUN---Cooling Technical Master   Since 1929, Germany As one of the most professional ice machine manufacturers in the world, Focusun always develops high refrigeration technology with innovation. Our R&D center is located in Jiangsu Province, China, with more than 35,000 square meters of standardized modern factory and advanced product testing platform. We mainly design and manufacture Tube Ice Machine, Block Ice Machine, Flake ice machine, Cube Ice Machine, Plate Ice Machine, Water chiller, Concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms. Over a decade, we have provided quality service to more than 16,000 professional clients in 88 countries around the world. Product Description Product Application Our tube ice machine is both used in customer consuming and cooling systems, and it's also widely used in restaurants, fast-food stores, supermarkets, healthcare centers, schools, Night clubs & bars, meat plants etc.
This tube ice machine is environmentally safe, using Freon refrigerant. All surfaces that contact with water (including the cover) are stainless steel.

Subject Unit Technical parameter
Power supply Voltage/Phase/Frequency                                           380V/3P/50Hz
Refrigerant                                                                                               R404A
Capacity Kg/day                                                                                      10000

Temperature Ambient temperature ℃                                                 35

Water inlet temperature ℃                                                                     20

Operating power Total running power Kw                                           34.95

Installment power Kw                                                                              45

Operating power of cutter Kw                                                                0.37

Operating power of cold water pump Kw                                            0.55

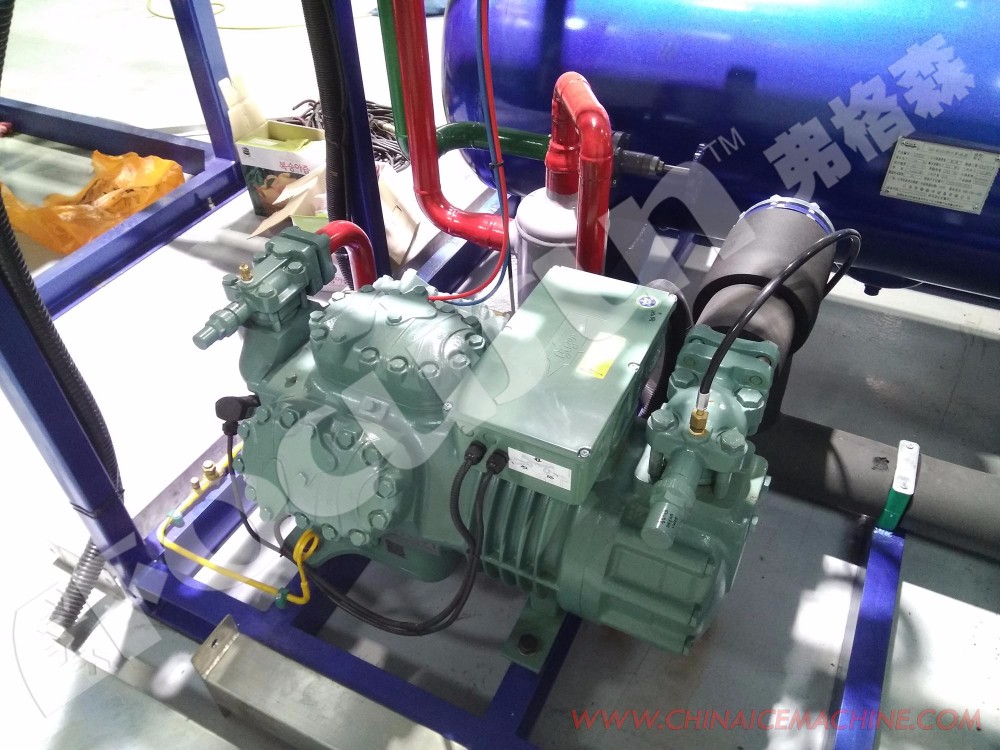

Compressor Manufacturer                                                                    Bitzer

Refrigeration capacity Kw                                                                      36.4

Operating power Kw                                                                                13.51

Compressor COP/EER Kw/kw                                                                2.7

Horse power Hp                                                                                        25

Condenser Fan power Kw                                                                       1.6

Cooling way                                                                                               Air cooling

Size of condenser (L×W×H)(mm)                                                          1800×1500×3500

Size of water feeding pipe                                                                       1/2"

Weight of unit Operating weight of tube ice maker Kg                       4526

Operating weight of condenser Kg                                                         150

Water supply pressure requirement                                                        Bar 1

Main Features Salient Features of Big Capacity Tube Ice Machine:

- Capacities offered: 1, 000Kgs/24H to 60, 000Kgs/24H.

- Simple design/engineering.

- No requirements of skilled workers.

- High durability, minimal maintenance.

- High energy efficiency.

- SS304 stainless steel tube ice machine

- Water Distributors: Made up of elastic material which creates a continuous and uninterrupted peripheral seal between the tube ends and water distributor.

- Refrigerant: R22/R404a

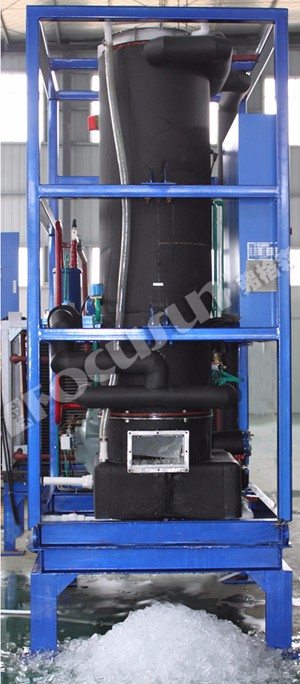

- Freezer: High quality stainless steel for all water and ice contacting surfaces which are corrosion resistant and easy to clean.

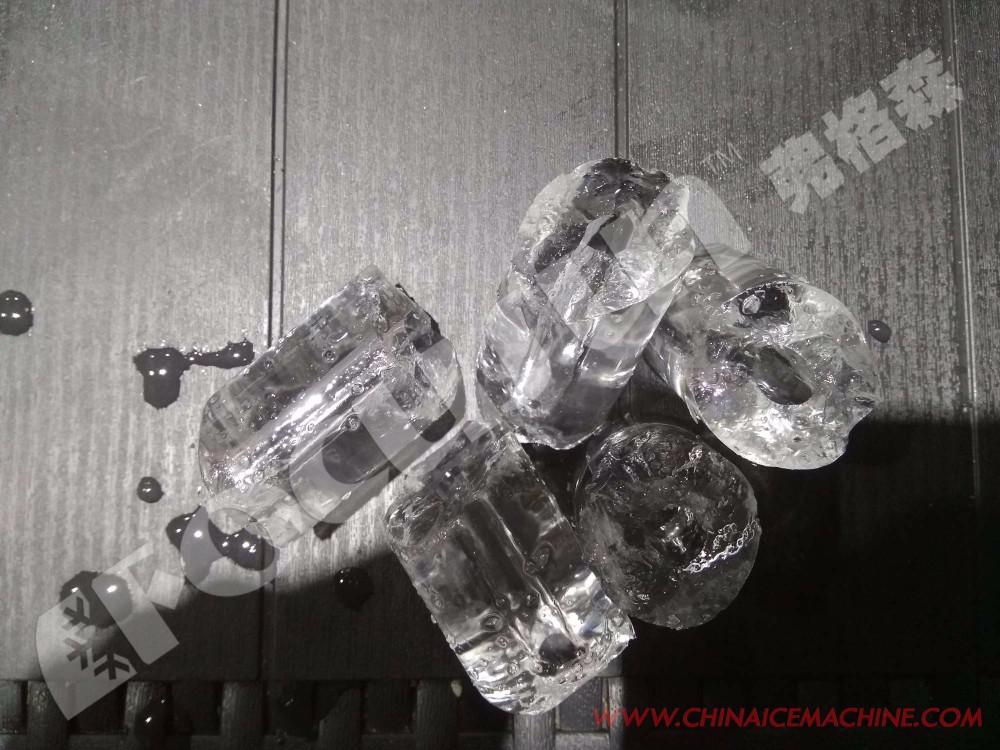

- Cutter: Stainless steel cutters driven by gear motors are uniquely designed to produce both cylindrical and crushed ice simply by reversing the motor of cutter and using a switch on the control panel that controls this function.

- Cutter Motors: Built with heavy duty design to give years of reliable ice-cutting service

- Pumping Tank (Water Pumps): Centrifugal casting iron pump is large enough to circulate the quantity of water to be frozen for many times and produce crystal clear ice.

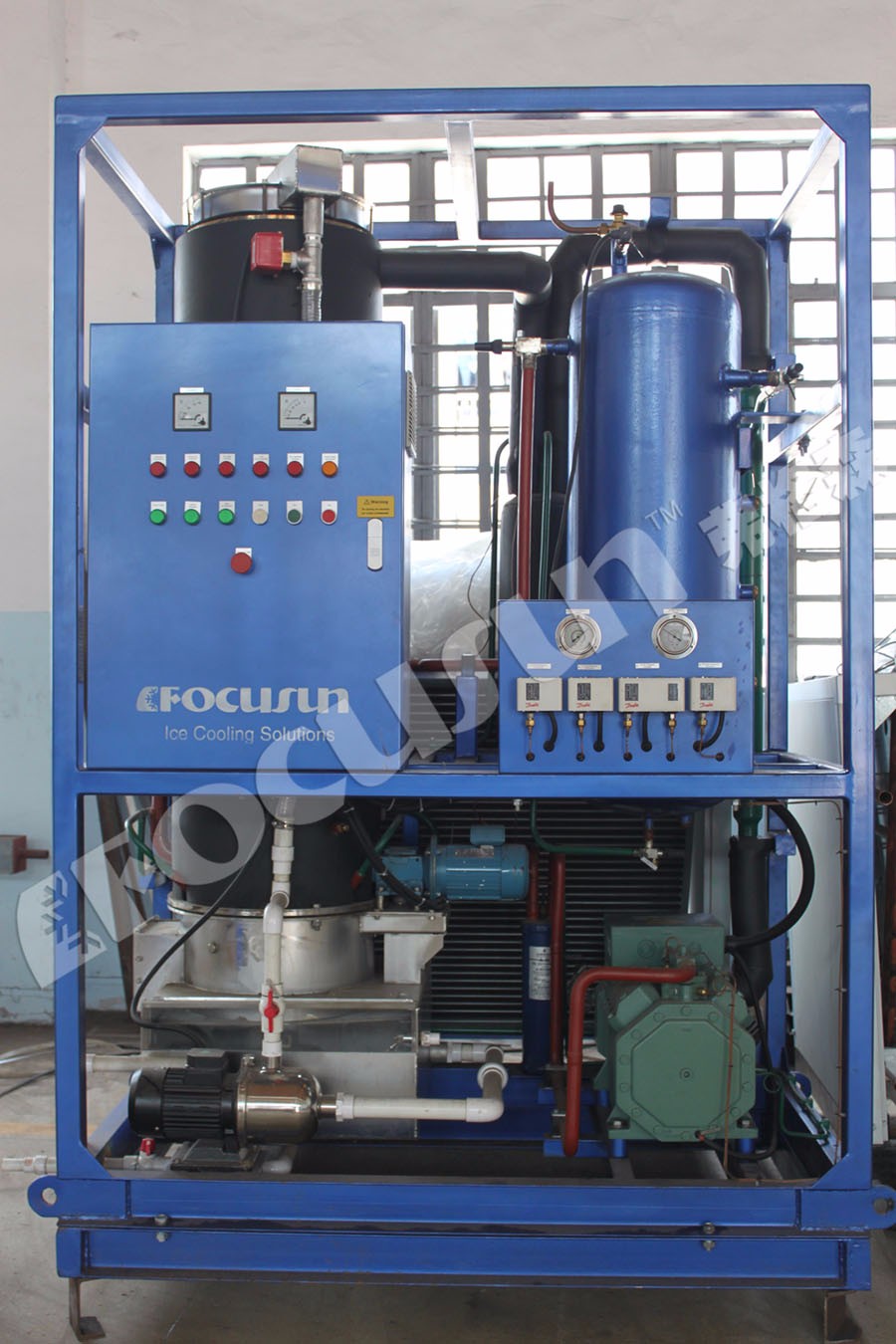

- Control Panel: Access to the automatically electrical system which performs sequences of freezing and thawing precisely and dependably year after year.

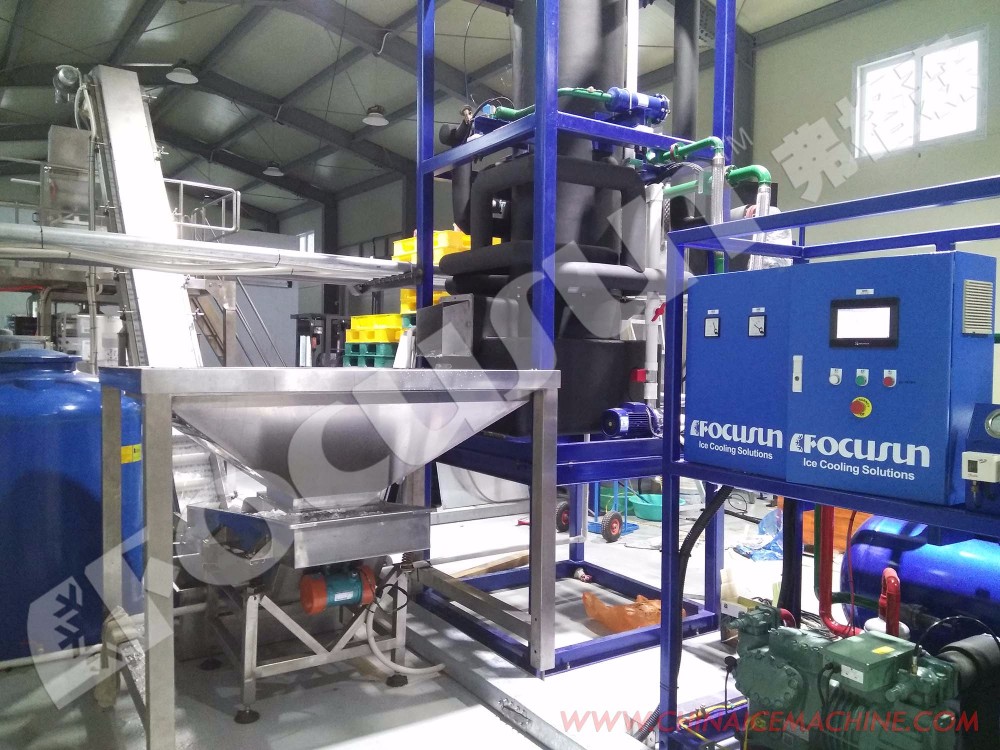

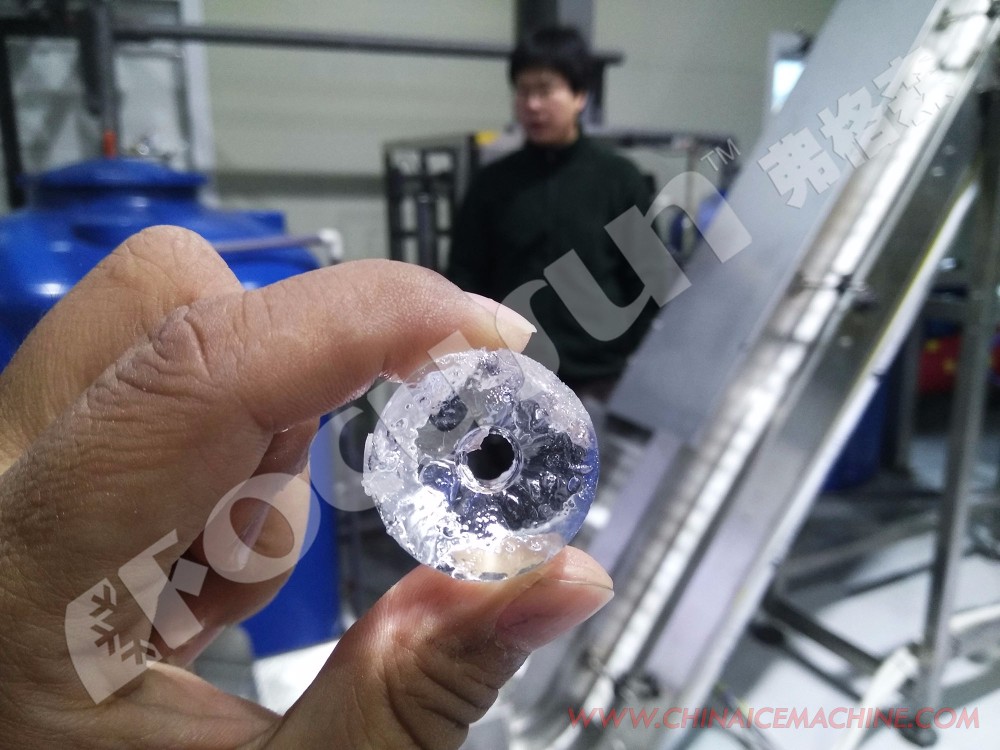

Detailed Images Tube ice machine + Fully-automatic ice packing machine

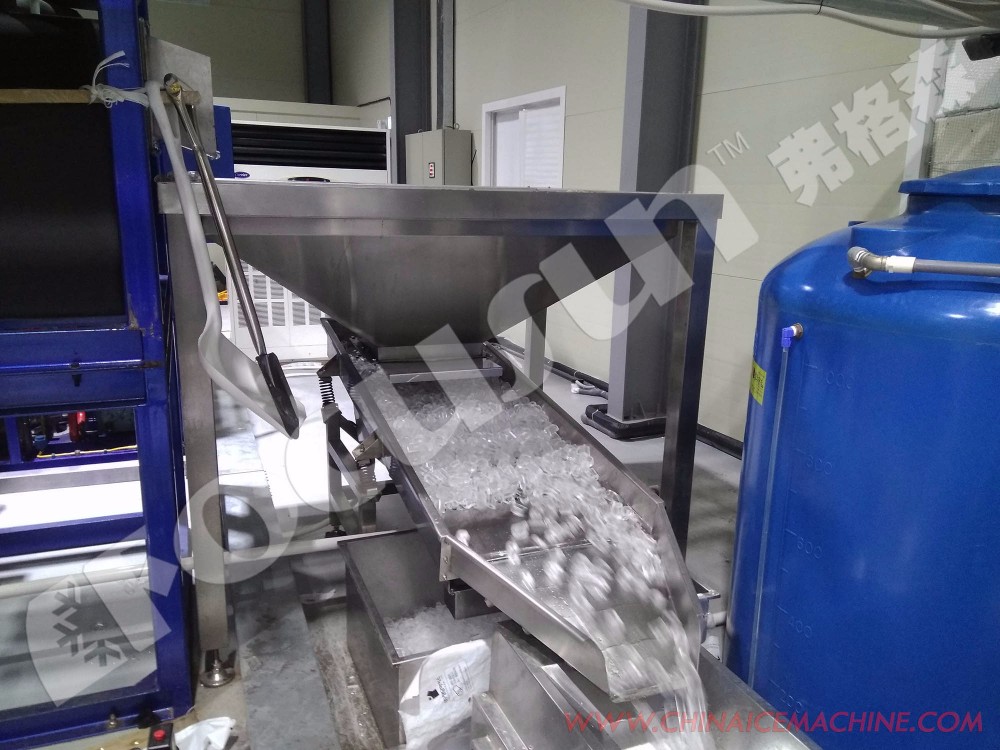

Hygiene, high quality SUS304 Big ice inlet hopper realizes no ice loss Tube ice machine + Fully-automatic ice packing machine

Full functions of feeding, weighing, packing, filling, sealing, printing, punching(optional), counting etc.
Tube ice machine + Fully-automatic ice packing machine

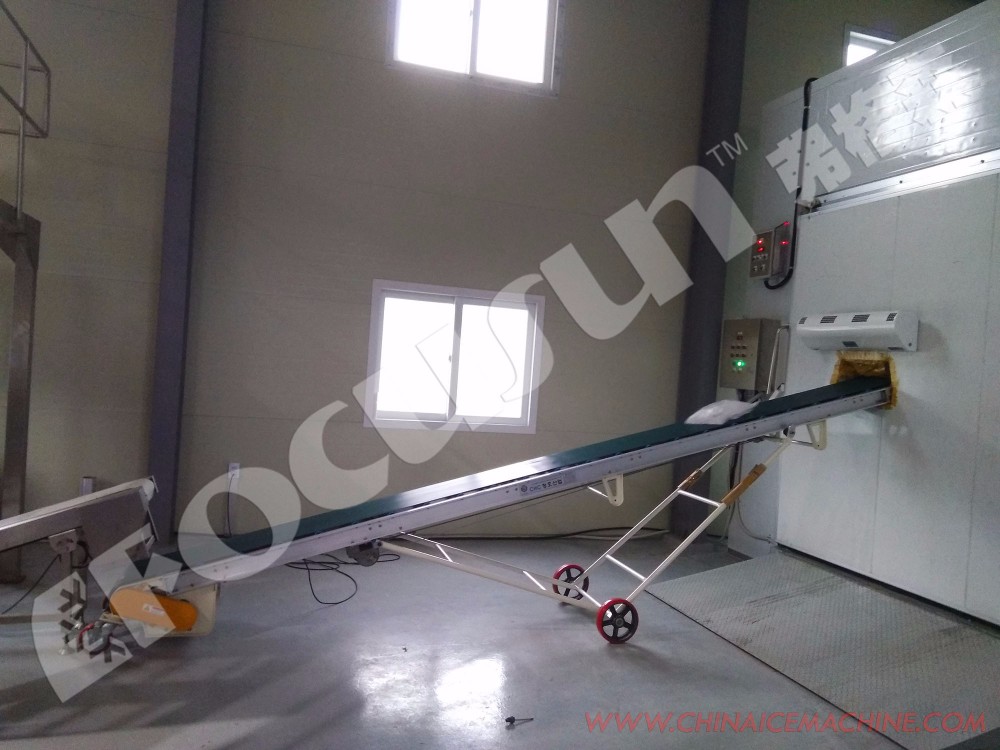

PVC and stainless steel 304 conveyor belt, pollution prevents and keep bags clean. Its length can be adjusted.
Tube ice machine + Fully-automatic ice packing machine

Certifications Related Products Cube ice machine  91.8% Response Rate Tube ice machine  91.8% Response Rate Block ice machine  91.8% Response Rate Packing & Delivery PACKING DETAILS The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Service Pre-Sales Service * Inquiry and consulting support.  * Sample testing support.  * View our Factory. After-Sales Service
* Training how to instal the machine, training how to use the machine.  * Engineers available to service machinery overseas. FAQ Q1. What is your terms of packing?
A: Generally, we pack our goods in platict films or cartons, normally a FCL shipping.

Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance. You're welcome to see the test of the machines for days.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?
A: Generally, it will take 45 to 60 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: No, all the machines are customized according to power supply ice size in difference. We don't provide sample.

Q6. What is your aim?
A: And we would be happy that our customers using our brand Focusun across our world. We aim to give cutomer best products with reasonable price.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Contact us if you need more details on tube ice mahcine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about ice packing machine、tube ice maker. If these products fail to match your need, please contact us and we would like to provide relevant information.
