Full automatic ice tube packing machine

Product Description

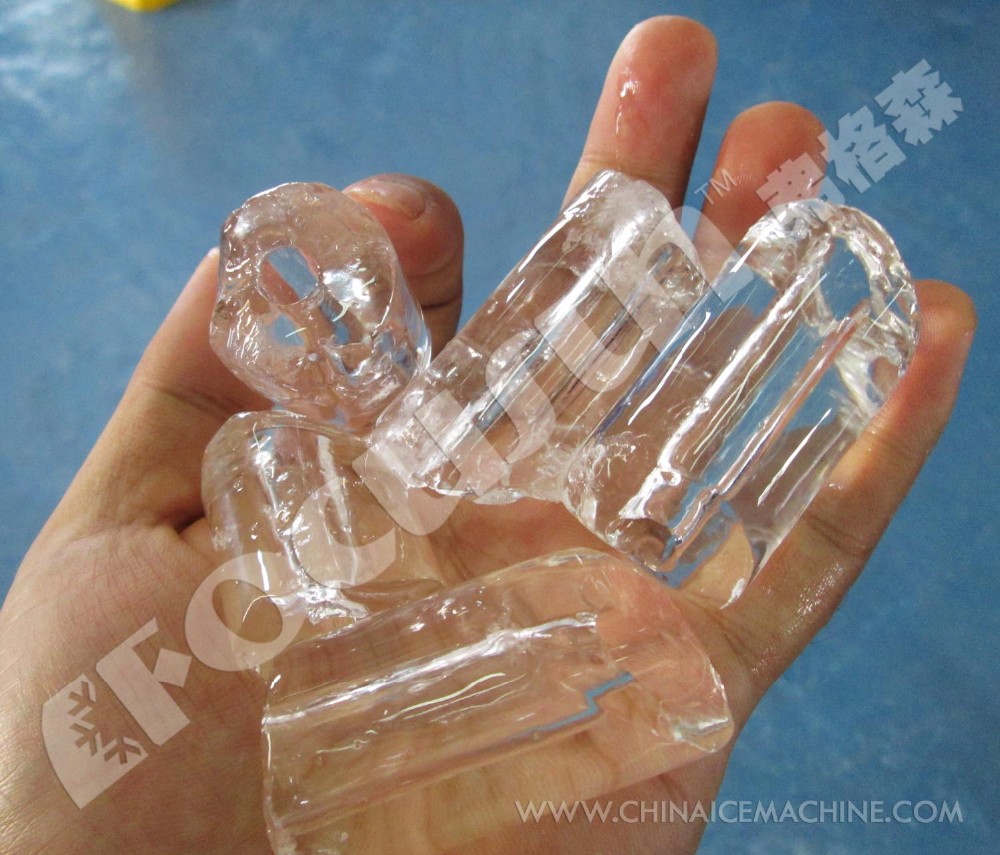

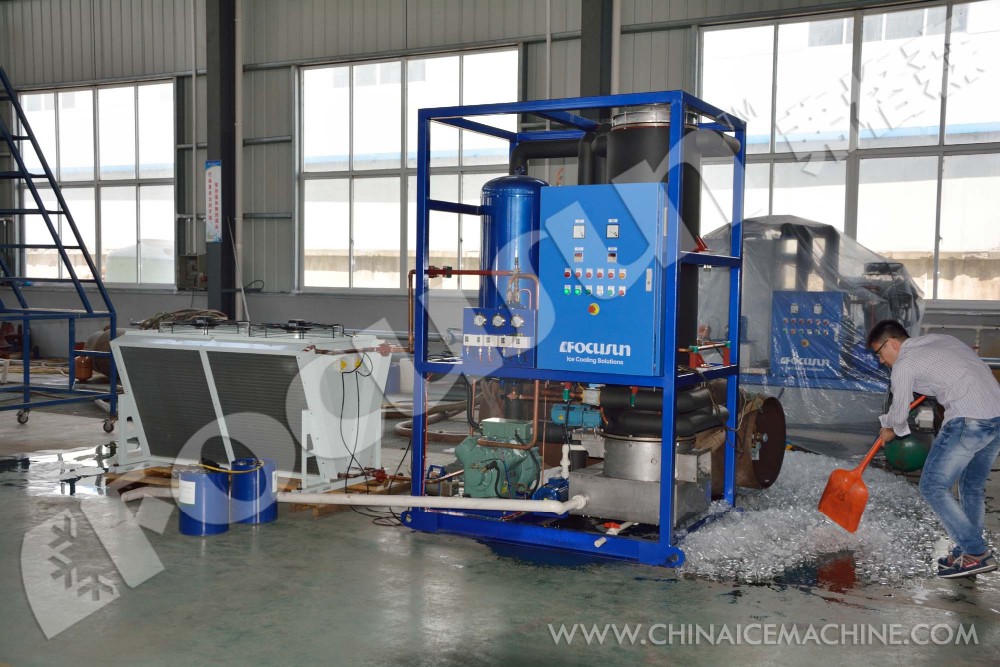

  Company Information   BRAND: FOCUSUN/GERMANY TECHNOLOGY Focusn has been a force in manufacturing Ice Plants & Ice Machines with bagging system. Our technological excellence, commitment to quality and prompt after sales service has won us over 150 satisfied customers.   FOCUSUN can supply you with everything from a single Tube Ice Machine to a complete turnkey tube ice plant with an ice production capacity range of 1TPD to 70 TPD or more. We have installed and started-up tube ice plants for chemical companies, concrete companies, food processing companies, fisheries, poultry-processing, meat plants etc Product Overviews                                    1ton/24hours tube ice machine                                   35mm-tube ice outer diameter           5tons/24hours water cooled tube ice machine                                      5tons/day air cooled tube ice machine                              10ton per day tube ice machine with water cooling tower                22mm tube ice outer diameter      20tons/day tube ice machine with evaporative cooling    29mm tube ice    Diameter of tubes of Evaporator:35mm, 29mm, 22mm              Automatic ice bagging machine                                     Semi-automatic ice bagging machine Automated ice packing machine automatic packaging line
automatic ice packing machine for tube ice, cube ice

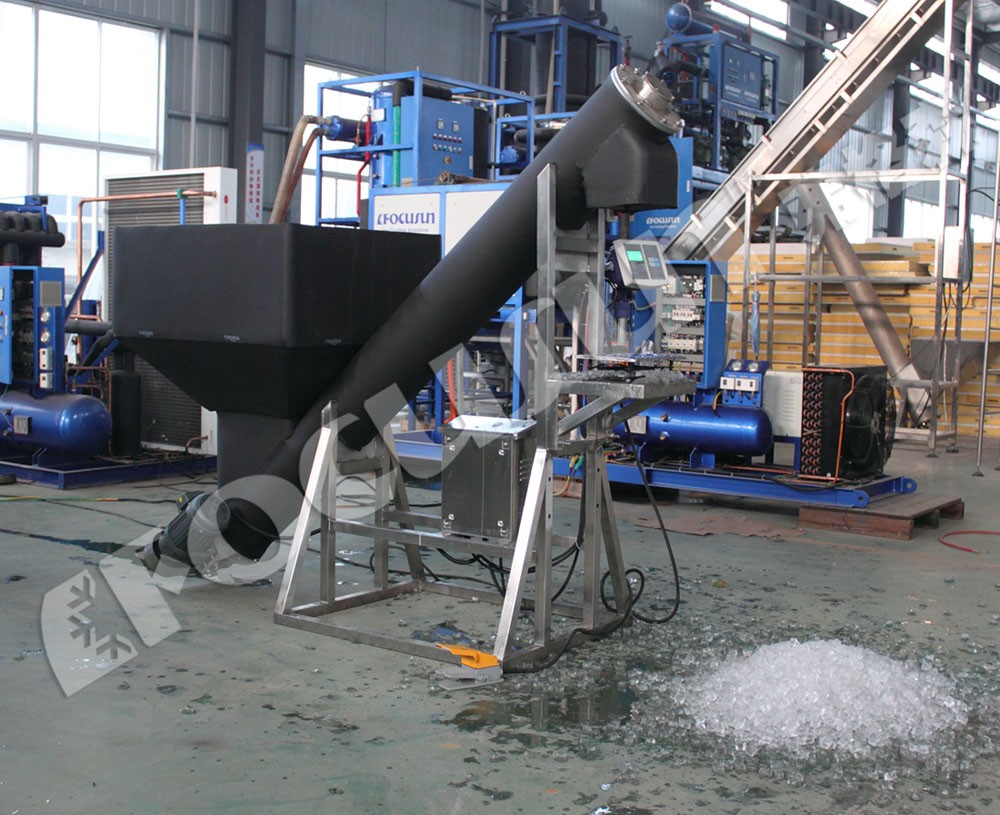

automatic bagging sealing machine   Features of machine   FP-01A is designed to meet the food standard. All products contacted area is covered by high quality SUS304. It is multi-functional, can be used in different products packaging. Easy to use, finger controlled style, super intelligent, high performance in both speed and accuracy--All in one machine, Focusun designed.   The whole process is controlled by a touch screen monitor which complied with a LPC computer Japan. All information includes running state, operation order, error state, production data processing are display by the touch screen. You dont need to pause the production for revising parameters and adjusting position.   Focusun, FP-01A is utilizing a Z-type conveyor loader. I will significantly minimize the damage to ice. Auger type is available for alternative customizing.         It contains a single weighing head, or multiple weighing heads for optional choices. The single weighing heads configuration is capable to process 1.8 tons tube/ cube ice per hour. Free choice for packaging size from 0.1Ks to 5Ks. Its stable and accurate performance of film pulling has been achieved by utilizing an AC Alternating Current servo motor. Also it doesnt need to be lubricated.   FP-01A has equipped with a programmed temperature sensor which can control the hot sealing temperature and timing. The zigzag shape sealer can also print the lot number on the package. Finished package will be in envelop type (pillow type and block bottom type are optional).   System structural components: Vibration feeder Loading conveyor (Auger for alternative) Computer complete weight balance LCD control board Vertical form fill seal machine Output conveyor Check weight balance Metal detector Rotary collection table   System configuration: Main alternator: Panasonic (Japan) PLC: Panasonic (Japan) LCD display: Panasonic (Japan) Compressor: AIRTAC (Taiwan) Sensor: Omron (Japan) Switch board: Chint (China)   Specification:



MEASUREMENT

  L×W×H mm

NET WEIGHT

Kg

GROSS WEIGHT

  Kg

VOLUME

CBM

Packaging section

1200*1200*1800

420

480

2.6M3

Weight balance

1600*1100*1000

200

250

1.8M3

Z-type loader

2500*700

350

380

1.8 M3

  Power220v  50Hz  1.8kw Film width: 350mm Metering speed: 12bag/min Air consumption: 0.7Mpa 20L/min Weighing accuracy: ± 0.1% Metering capacity2-5Kgs       Factory & Certificat   Our Services

Perfect service system:



All Focusun ice machines come out with 15 months full warranty. If the machine breaks down in15 months, Focusun will send the parts for free, even send the technician over if situation needed. When beyond the warranty, Focusun will supply the parts and service only for factory cost.

Process: Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem: Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
A We will dispatch our Quality and Problems Appraisers to make a confirmation.
B Have a negotiation of the compensation and sign agreements
C Our After-Sales Department will perform the duties as the agreement
  This model designed for production 10 ton ice in a day. We use high quality material & equipment for manufact the system. The system is installing on a body with all equipment. It can design the weight of molds according to 5kg, 10kg, 15kg, 20kg, 25kg, 30kg, 50kg, 70kg, 75kg, 100kg, 140kg and even bigger size ice block.   Call me or message me via Whatsapp or Wechat 0086 15821912409 to know more.

Contact us if you need more details on ice tube packing machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about automatic ice packing machine、ice tube paking machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
