Automatic rake ice storage system

Product Description

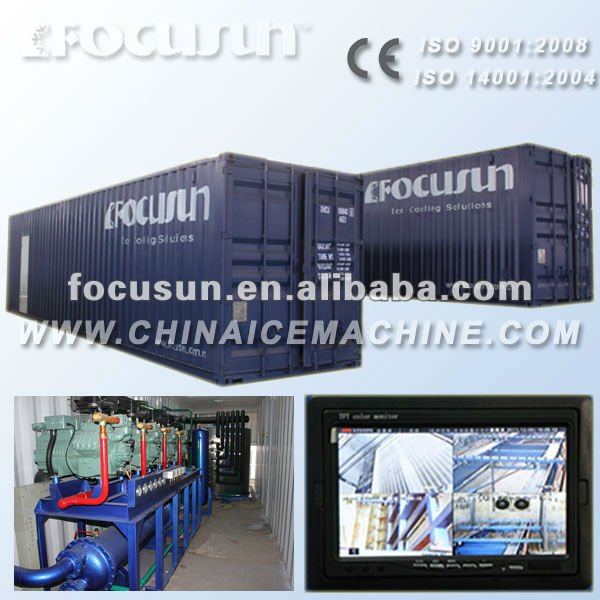

Focusun has rich experience in designing the Automatic rake ice storage room according to your requirements. The holding capacity can ups to 20-200tons including fully-automatic ice rake.   Focusun containerized ice-making unit is mainly designed for concrete cooling hydropower station, nuclear power station, high-speed railway, chemical industry; All components and units are highly integrated in a standard container for easy moving and transportation, automatic ice storage and ice delivery devices can be matched to it to meet the needs of a large amount of ice.   Focusun containerized ice storages are insulated storages designed to store large amount of flake or plate ice, with an ice capacity ranging from 23tons to 200tons.   The storage consists of inner and outer parts. The inner part is an Ice storage room with an ice rake inside and an air cooler on the top while the outer part includes an ice deflector with a horizontal spiral conveyor below. Cooling air can still be circulated inside even when the storage is full of ice.
One or more flake ice machines can be mounted on the top of the storage supported by a separated construction. In ice making process, the internal rake mechanism constantly spreads the ice evenly throughout the storage, and freshly made ice will fall into the storage, later the automatic ice rake mechanism will push out the ice into the ice screw outlet mechanism when requested and consists of one or more spiral conveyors. At the same time, Focusun provides the integrated controls.   Only need one person to touch screen panel for easy operation and observation of settings and measurements. Display which is mounted with camera and switch board can monitor the operation inside the storage.     Technical Data of Automatic Ice Storage


Storage Capacity(T)








Advantages: 1.Focusun storage system are built with heavy-duty industrial grade components for continuous operation, long life and low maintenance. All components are seriously chosen and tested. 2. Ice rake levels the ice as it is produced by the ice maker, then sweeps it out of the bin during the discharge cycle.   3. The hoist automatically adjusts the height of the rake to level the ice in the bin.   4. Standard ice bin components are hot-dipped galvanized. Stainless steel options are also available.   5. Control panels can be designed to accommodate dual rake systems, multiple ice makers or other design options. The panel integrates starter and logic controls for the ice maker, rake and delivery system. Control panels are also available with optional programmable logic controller and operator interface panel.
6. Customized and designed to fit available space and maximize ice storage requirements.   .7. The ice storage is specially designed with double-layer insulated layer. There is an air circulation layer around the ice, even when the ice storage is full of ice. There is a cooling device equipped to keep the ice storage temperature at -8°C, which will keep the ice dry and soft.       8. The ice rakes has compact structure and stable performance, adopts high quality special material.       9. The hoister can adjust the height of the ice raker automatically to ensure the ice raker is always above the ice surface.       10.The ice bin door, which is equipped with a carrier, can be opened and closed automatically. Through the ice bin door, you can observe the ice level inside.       11.The automatic ice storage has two ice outlets. We have one-way and two-way ice outlet for your option. All systems are equipped with pneumatic ice delivery system or screw ice delivery. The control panel adopts PLC and touch screen, including short circuit protect, variable-speed drive for the ice rake elevation, humanized operation interface and alarm system.    If you are interested to build a complete systems, please contact us.

Contact us if you need more details on rake system ice storage. We are ready to answer your questions on packaging, logistics, certification or any other aspects about ice storage、rake system ice storage room. If these products fail to match your need, please contact us and we would like to provide relevant information.
