2020 new technology 2 Ton Plate Ice Making Machine with popular

Product Description

#detail_decorate_root .magic-0{border-bottom-width:2px;border-bottom-style:solid;border-bottom-color:#53647a;background-color:#c5ccde;margin-left:0;margin-right:0;padding-left:8px;padding-right:8px;color:#53647a;font-family:Roboto;font-size:24px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:498px;height:320.4220821001158px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:4px}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:506px;height:320px}#detail_decorate_root .magic-4{width:248px}#detail_decorate_root .magic-5{overflow:hidden;width:248px;height:158.13223464783204px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-6{margin-top:0;margin-left:0;width:247px;height:165px}#detail_decorate_root .magic-7{overflow:hidden;width:248px;height:158.13223464783204px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-8{vertical-align:top}#detail_decorate_root .magic-9{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-10{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-11{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-12{margin:0;padding:0}#detail_decorate_root .magic-13{overflow:hidden;width:750px;height:500.15625px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-14{margin-top:0;margin-left:0;width:750px;height:500.15625px}#detail_decorate_root .magic-15{overflow:hidden;width:373px;height:248.744375px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-16{margin-top:0;margin-left:0;width:373px;height:248.744375px}#detail_decorate_root .magic-17{overflow:hidden;width:373px;height:248px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-18{overflow:hidden;width:498px;height:332.10375px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:4px}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:498px;height:332.10375px}#detail_decorate_root .magic-20{overflow:hidden;width:248px;height:167.30783222156822px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:-11.826162448499117px;margin-left:0;width:247px;height:180px}#detail_decorate_root .magic-22{overflow:hidden;width:248px;height:167.30783222156822px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-24{padding:0;font-size:16px;line-height:20px;font-weight:bold;color:#333;margin:0}#detail_decorate_root .magic-25{width:446px}#detail_decorate_root .magic-26{overflow:hidden;width:446px;height:261.65333333333336px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:446px;height:297px}#detail_decorate_root .magic-28{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-29{overflow:hidden;width:373px;height:250.0853150269542px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:425px;height:284px}#detail_decorate_root .magic-31{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-32{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-33{width:244.656px;height:234px;overflow:hidden}#detail_decorate_root .magic-34{position:relative;left:0;top:-4.5px;width:244.656px;height:244.656px}#detail_decorate_root .magic-35{padding:0;margin:0;color:#333;font-size:14px;white-space:pre-wrap}#detail_decorate_root .magic-36{position:relative;left:0;top:-6.66667px;width:244.656px;height:244.656px}#detail_decorate_root .magic-37{position:relative;left:0;top:-10px;width:244.656px;height:244.656px}#detail_decorate_root .magic-38{overflow:hidden;width:750px;height:450px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:449.9px;height:449.9px}#detail_decorate_root .magic-40{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-41{padding:0;margin:0}#detail_decorate_root .magic-42{overflow:hidden;width:750px;height:477px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:750px;height:477.365px}#detail_decorate_root .magic-44{overflow:hidden;width:247.33333333333334px;height:323.50184204215986px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-45{margin-top:0;margin-left:0;width:247px;height:324px}#detail_decorate_root .magic-46{overflow:hidden;width:247.33333333333334px;height:323.50184204215986px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-47{margin-top:0;margin-left:0;width:247px;height:340px}#detail_decorate_root .magic-48{margin-top:0;margin-left:0;width:247px;height:360px} Our Company About Focusun As the top manufacturer of ice machine in China, Focusun™ dedicates itself into researching and developing advanced refrigeration technology. We mainly design and manufacture Tube Ice Machine, Block Ice Machine, Flake ice machine, Cube Ice Machine, Plate Ice Machine, Slurry Ice Machine, Water chiller, Vacuum cooler , Concrete cooling system, automatic ice storage system, dynamic ice storage system, snow making system, ice crusher and all kinds of cold rooms.
Product Description Plate ice introduction: Plate ice is a kind of irregular sheet ice with about 40×40mm~80×80mm in size, and 10 mm~15mm in thickness. The thickness can be adjusted according to ice-making time with the maximum gauge being 25mm. Plate ice is a kind of thick and transparent ice which has good air permeability and a long shelf life.

Application fields: Plate ice is usually used for ice storage systems and is also applied to concrete mixing plants, chemical plants, mines, fresh vegetables, fishing and aquatic insulations.
Ice making process introduction:

When the refrigeration system begins operating normally, the water in the tank below is transported from the cold water tank to the cold water sprinkler by the cold water pump. It is then evenly sprinkled on the surface of the Evaporator . Through the cycle working of the refrigerant, some water is created into plate ice, while the water which does not become ice returns to the cold water tank below and waits for the next water cycle.
After a period of time the water cycle and refrigeration stops and the water and overheating refrigerants gas begin a heat exchange with the plate ice at the same time. The plate ice then loses adhesive force and the ice drops into the ice crushing gadget due to gravity. After the ice is off the water temperature becomes low and it returns into the water sink waiting the next cycle.

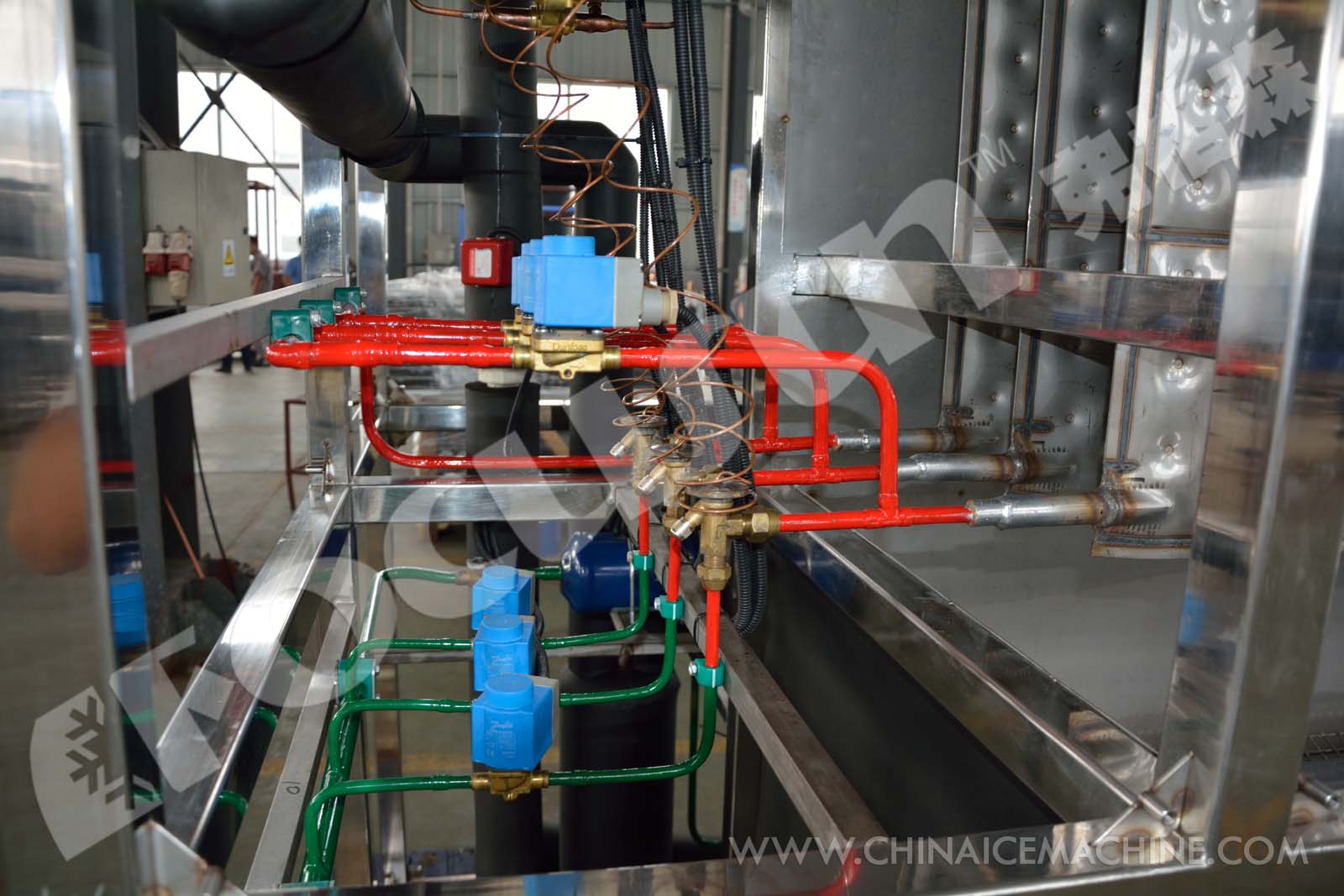

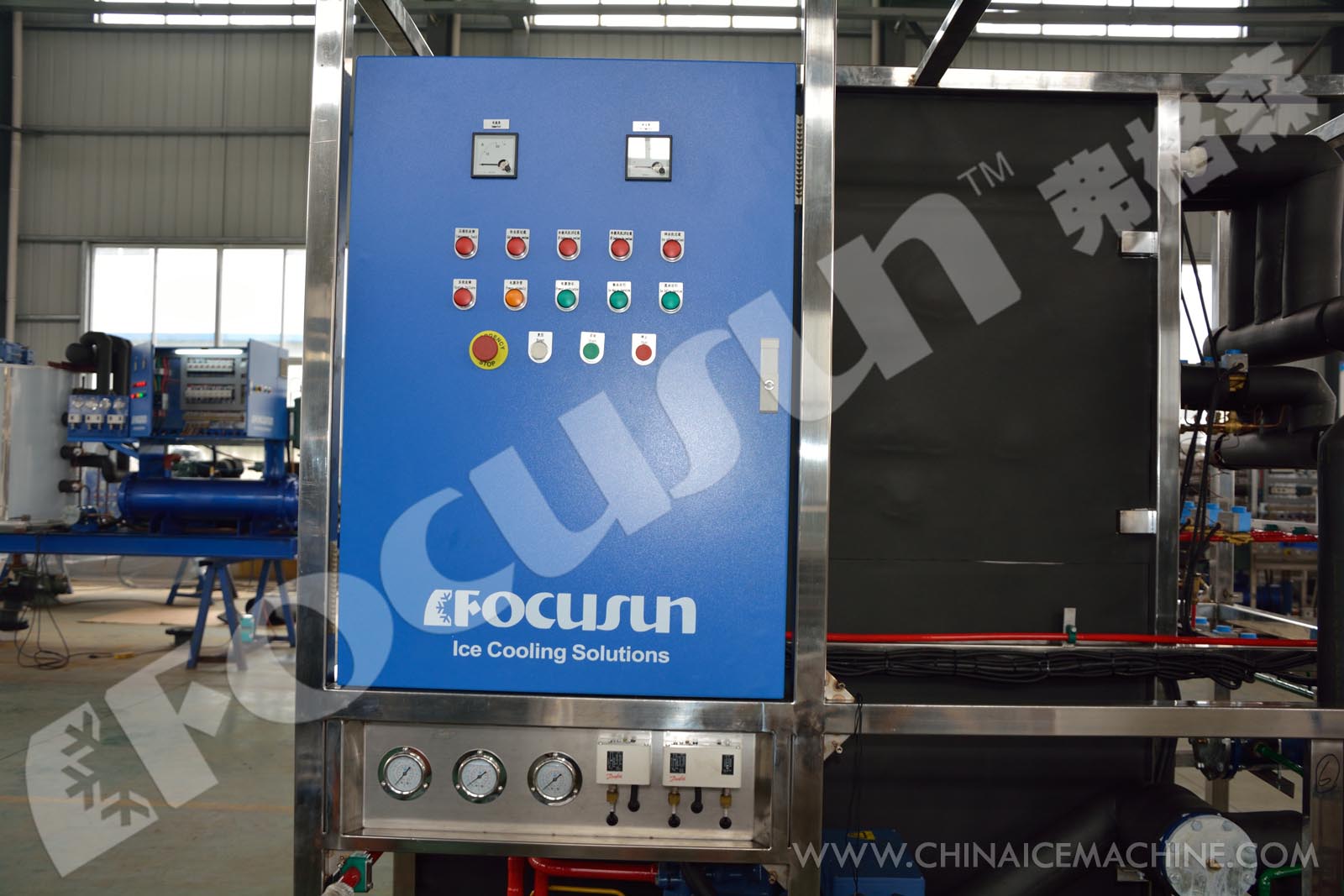

Detailed Images Details

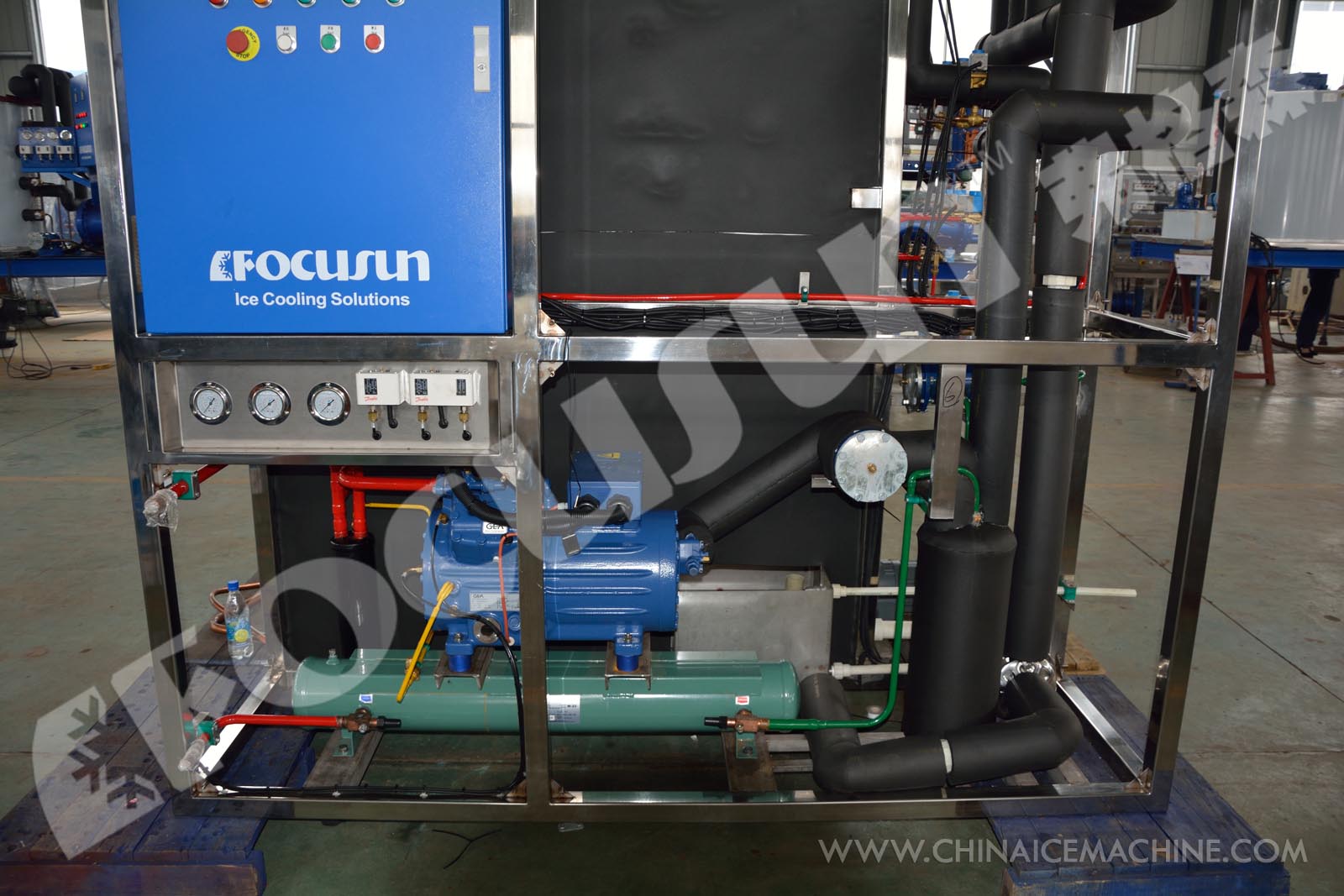

Compressor: Bitzer
Refrigerant: R22 or R404A
Ambient temperature: 35℃
Water supply temperature: 20℃ (require clean water or increase water filter and soft water treatment equipment)
Cooling way: air cooling
Power supply : 380V/3P/50Hz
Plate ice machine features: By using water and heat Fluorine, the whole ice off process only needs 120 seconds.

Ice making time adopts time control, which can be set to adjust the thickness of the ice.

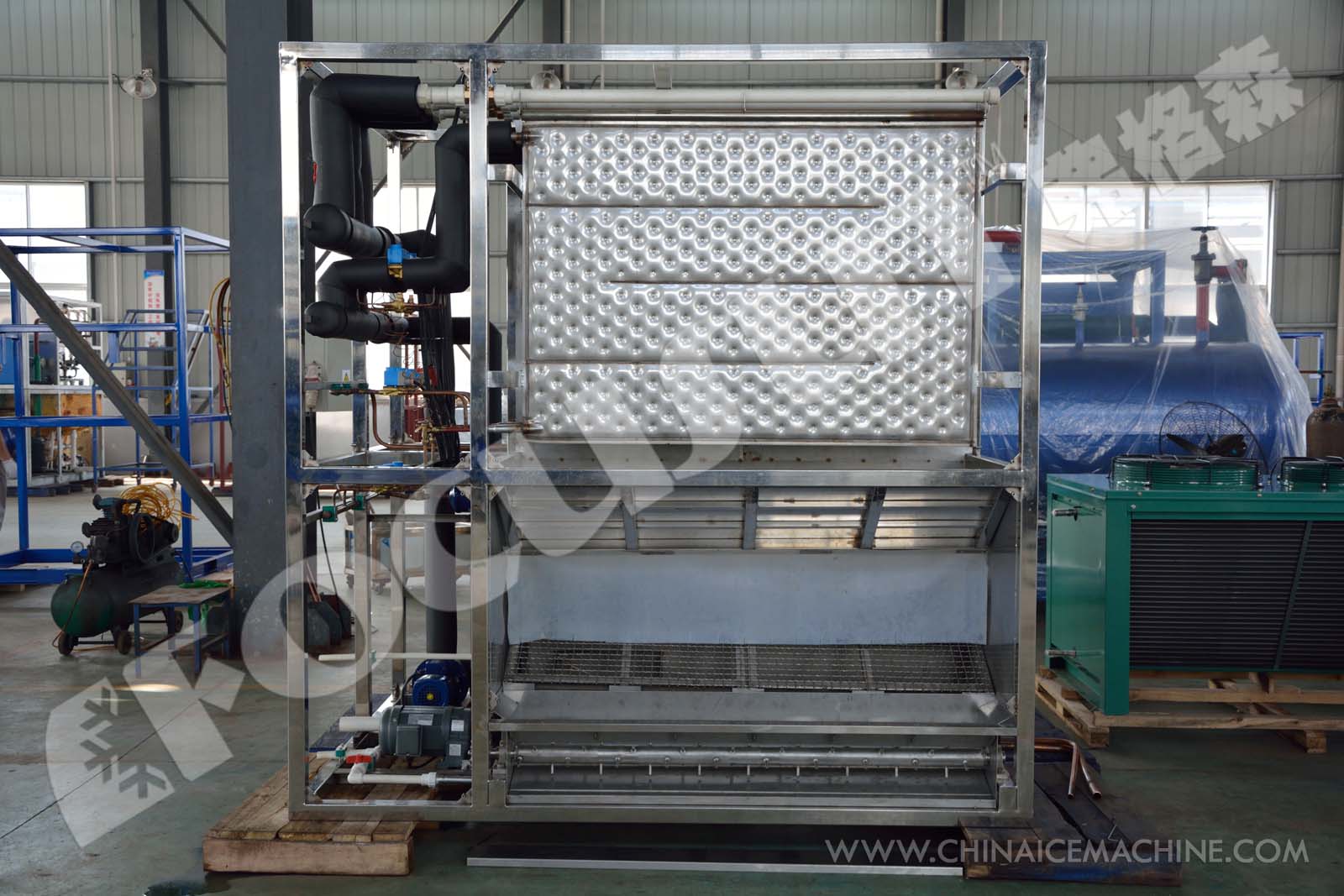

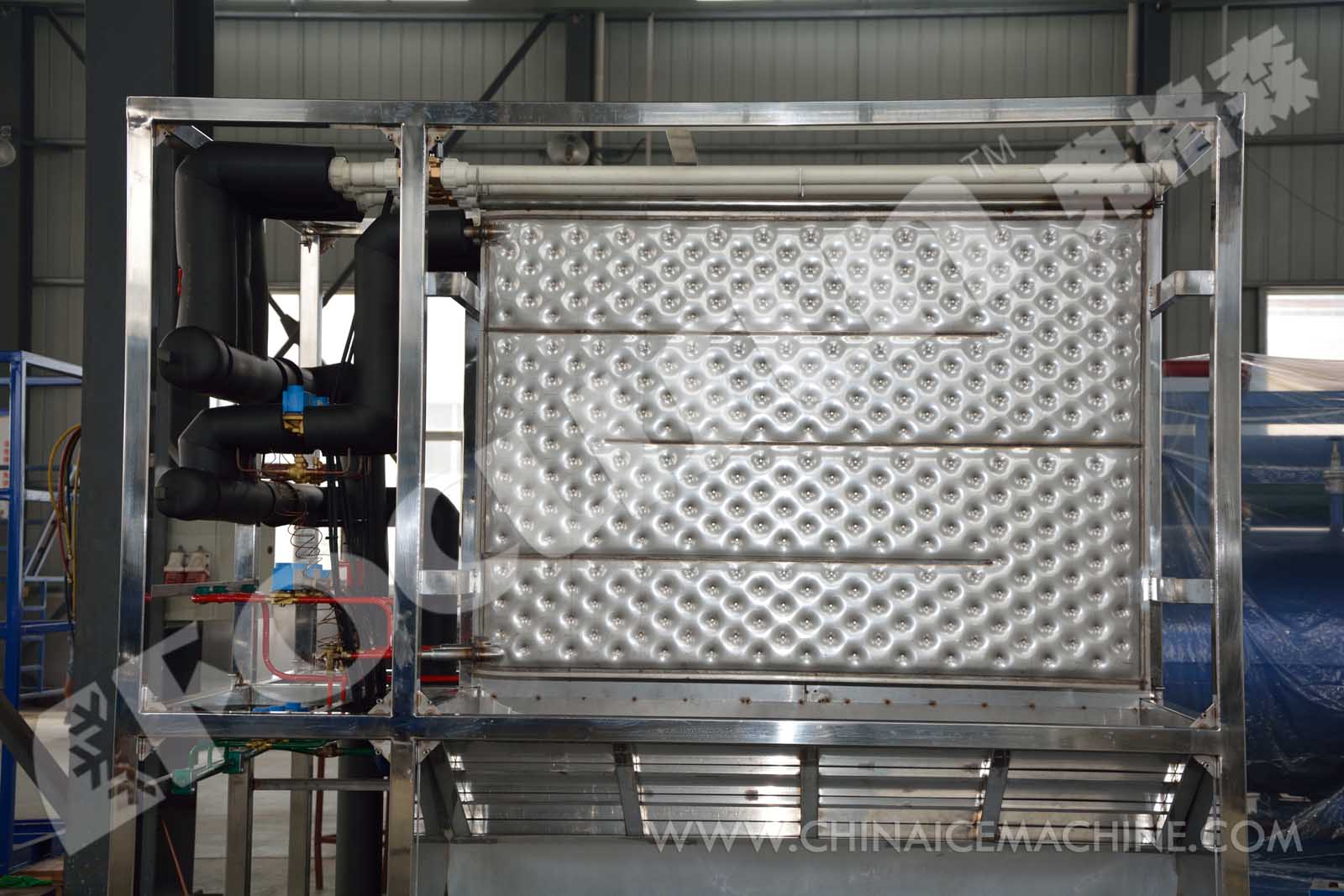

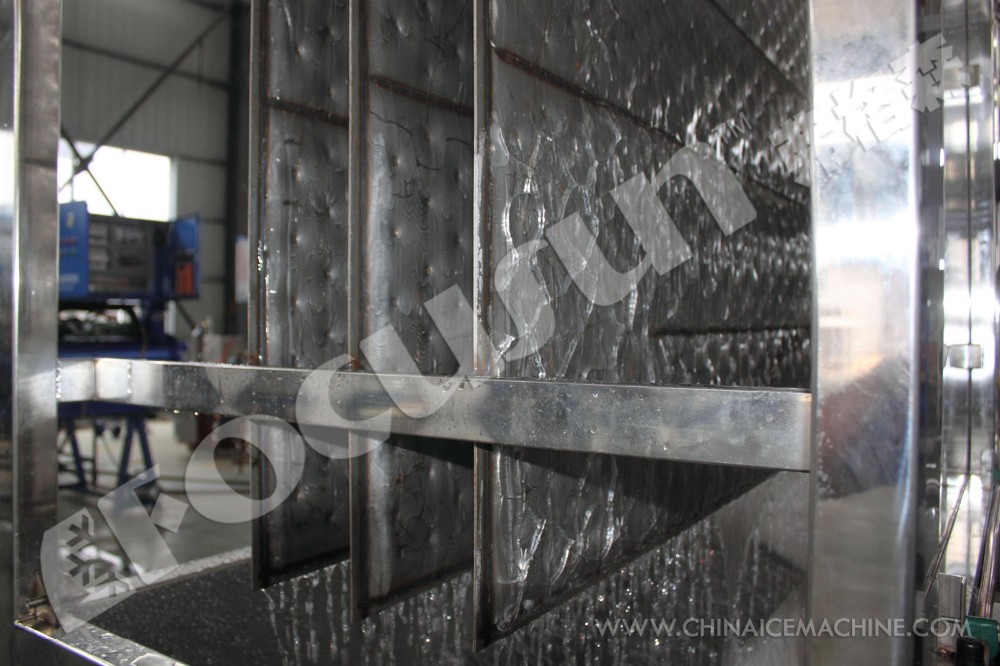

It conforms to the sanitary security requirements by adopting stainless steel SUS304, aluminum alloy plate chip evaporator.

Ice dump and water drainage function makes ice more clean and transparent.
It is convenient to install and maintain because of its modular equipment.
Standard power supply for small capacity plate ice machine is 380V/3P/50Hz and it can be customized.

With Bitzer semi-hermetic piston compressor it can be put into use when connecting water and electricity source.

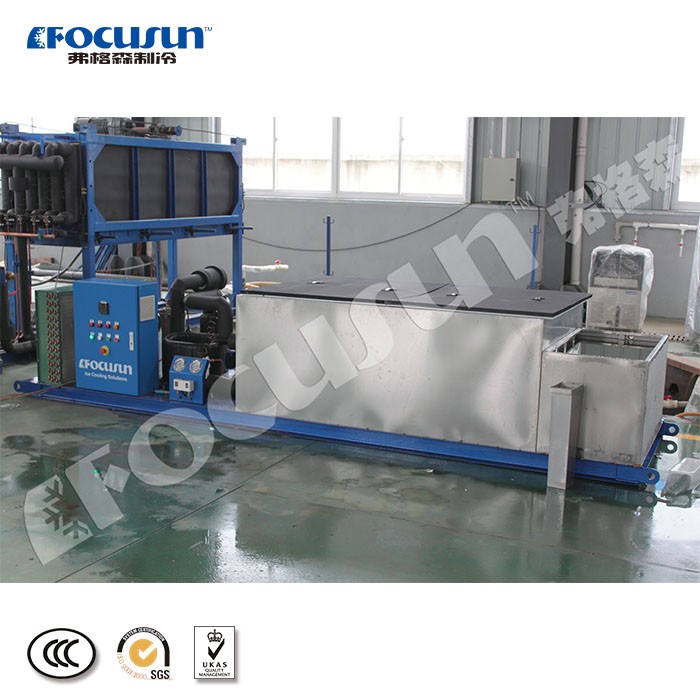

Related Products BLOCK ICE MACHINE
TUBE ICE MACHINE
CUBE ICE MACHINE
Packing & Delivery Packing Details. The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Service Pre-Sales Service. * Inquiry and consulting support.

* Sample testing support.

* View our Factory.
After-Sales Service. * Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Focusun has devoted itself into offering the most advanced complete plant, the most reliable design plan, and the most thoughtful after sale service, consequently helping our customers to create remarkable profits. Focusun's eternal faith is to continuously provide high quality products and distinguished sales service.

Focusun respects customers and understand customers with empathy. We try our best to consider all for our customers rather than only our own benefit. Focusun is all ears for customers' advice and suggestions which will be highly appreciated as the important way to improve our products and service.

Focusun pursues high efficient work and service which will save a lot of valuable time of our customers. Focusun's fast-response mechanism can ensure the most efficient service for our customers internationally.
Certifications FAQ Q1. What is your terms of packing?
A: Generally, we pack our goods in platict films or cartons, normally a FCL shipping.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance. You're welcome to see the test of the machines for days.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 45 to 60 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: No, all the machines are customized according to power supply ice size in difference. We don't provide sample.
Q6. What is your aim?
A: And we would be happy that our customers using our brand Focusun across our world. We aim to give cutomer best products with reasonable price.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;    2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Contact us if you need more details on automatic plate ice machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about plate ice maker、plate ice. If these products fail to match your need, please contact us and we would like to provide relevant information.
