Tube ice maker & tube ice maker machine (1 T 2T 3T 5T 30tons)

Product Description

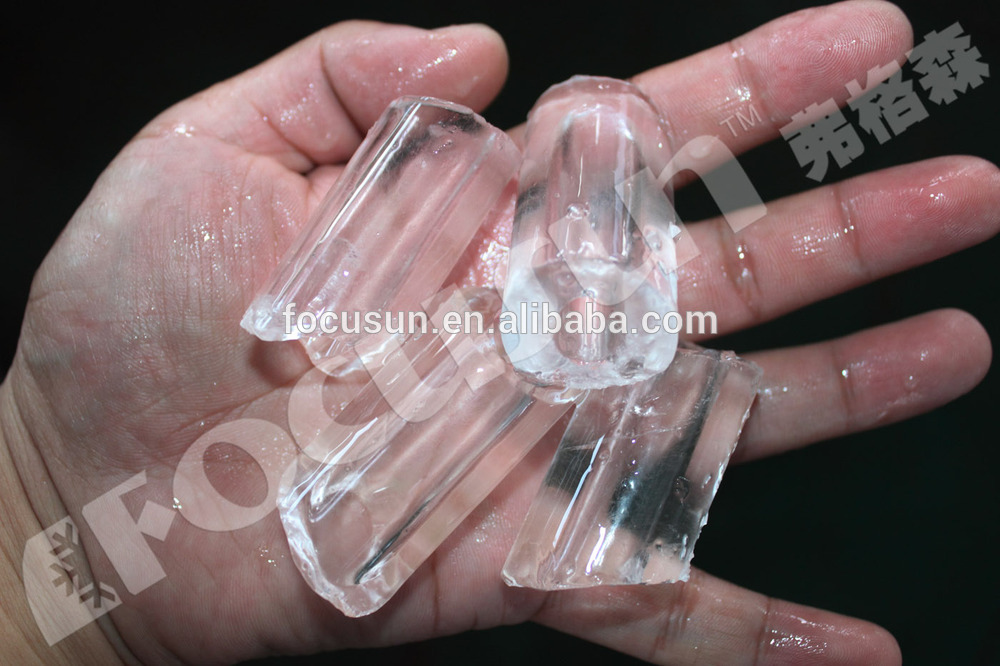

  1,Daily output:2 tons per day  2,Ice diameter: 22mm,29mm or 35mm
3,Ice length:30mm to 45mm
4,Control system:Siemens PLC
  Small capacity tube ice making machine Big capacity tube ice making machine Brand: Focusun German technology   Our Tube Ice Machine is both used in customer consuming and cooling systems, and it's also widely used in restaurants, fast-food stores, supermarkets, healthcare centers, schools, Night clubs & bars, meat plants etc.
This tube ice machine is environmentally safe, using Freon refrigerant. All surfaces that contact with water (including the cover) are stainless steel.
Salient Features of Big Capacity Tube Ice Machine:
- Capacities offered: 1, 000Kgs/24H to 60, 000Kgs/24H.
- Simple design/engineering.
- No requirements of skilled workers.
- High durability, minimal maintenance.
- High energy efficiency.
- SS304 stainless steel tube ice machine
- Water Distributors: Made up of elastic material which creates a continuous and uninterrupted peripheral seal between the tube ends and water distributor.
- Refrigerant: R22/R404a
- Freezer: High quality stainless steel for all water and ice contacting surfaces which are corrosion resistant and easy to clean.

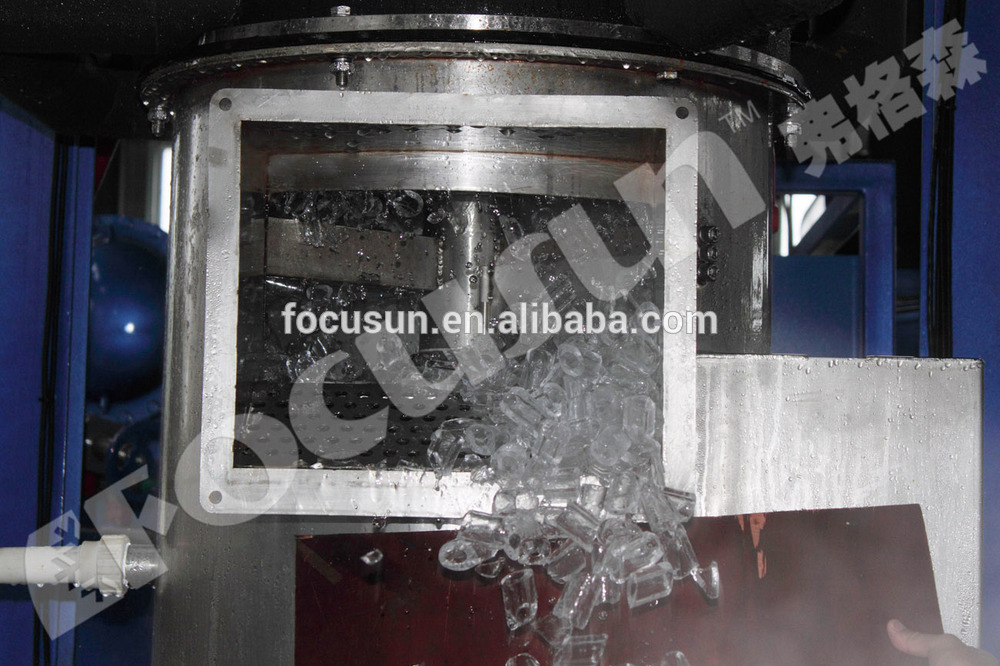

- Cutter: Stainless steel cutters driven by gear motors are uniquely designed to produce both cylindrical and crushed ice simply by reversing the motor of cutter and using a switch on the control panel that controls this function.
- Cutter Motors: Built with heavy duty design to give years of reliable ice-cutting service
- Pumping Tank (Water Pumps): Centrifugal casting iron pump is large enough to circulate the quantity of water to be frozen for many times and produce crystal clear ice.
- Control Panel: Access to the automatically electrical system which performs sequences of freezing and thawing precisely and dependably year after year.
  Specification of 2tons tube ice making machine:
Subject Unit Technical parameter
Power supply Voltage/Phase/Frequency 380V/3P/50Hz
Refrigerant   R22 or R404A
Capacity Kg/day 1000
Temperature Ambient temperature 35
Waterinlet temperature 20
Operating power Total running power Kw 16.03
Installment power Kw 20
Operating power of cutter Kw 0.37
Operating power of cold water pump Kw 0.55
Compressor Manufacturer   Bitzer
Refrigeration capacity Kw 36.4
Operating power Kw 13.51
Compressor COP/EER Kw/kw 2.7
Horse power Hp 25
Condenser Fan power Kw 1.6
Cooling way   Air cooling
Dimension Size of ice maker (L×W×H)(mm) 1700×1200×2200
Size of condenser (L×W×H)(mm) 1400×1250×1350
Size of water feeding pipe   1/2"
Weight of unit Operating weight of tube ice maker Kg 1460
Operating weight of condenser Kg 150
Water supply pressure requirement Bar 1
              TUBE ICE MAKING MACHINE MODELS        Dear Customer,   If you are interested in our tube ice machine, please don't hesitate to send us your enquiry. We are surely to give feedback within 24hours. No matter you are new in the ice business or have rich experience. We always welcome your great ideas or comments to discuss further.   We are sincere to work with you and your company for mutual cooperation! Ice makes life more wonderful Ice cool all summer Feel free to contact me! I'm so glad to help your business.

Contact us if you need more details on tube ice maker. We are ready to answer your questions on packaging, logistics, certification or any other aspects about tube ice maker、tube ice maker machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
