Juicy tube ice maker machine for keeping fresh and cooling in Myanmar Big Capacity Industrial Tube Ice Plant BRAND: FOCUSUN/GERMANY TECHNOLOGY We have been a force in manufacturing Tube Ice Plants & Tube Ice Machines. Our technological excellence, commitment to quality and prompt after sales service has won us over 150 satisfied customers. FOCUSUN can supply you with everything from a single Tube Ice Machine
to a complete turnkey tube ice plant with an ice production capacity range of 1TPD to 70 TPD or more. We have installed and started-up tube ice plants for chemical companies, concrete companies, food processing companies, fisheries, poultry-processing, meat plants etc SALIENT FEATURES OF TUBE ICE MACHINE Capacities offered: 1 tpd to 70 tpd of ice or more Tube ice dimensions: 1 1/8” diameter Design/Engineering simplicity No requirement of skilled workers High durability, minimum maintenance High energy efficiency Prompt service Complete spare parts provided MACHINE COMPONENTS OF TUBE ICE MACHINE Stainless steel tube ice machine Water Distributors: Made up of elastic material which creates a continuous uninterrupted peripheral seal between the tube ends and water distributor Accumulator with insulation Refrigerant:R22/R404A Float switch Freezer: Of high quality stainless steel for all water and ice contact surfaces providing corrosion resistance and easy to clean Cutter: Stainless steel cutters driven by gear motors are uniquely designed to produce both cylindrical and crushed ice simply by reversing the motor of the cutter using a switch on the control panel that controls this function Cutter Motors: Built with heavy duty design to give years of reliable ice-sizing service Pumping Tank (Water Pumps): Centrifugal cast in iron pump large enough to circulate many times the quantity of water to be frozen producing crystal clear ice crystals Heavy duty compressor Control Panel: Gives use access to the automatic electrical system which performs sequences for freezing and thawing precisely and dependably year after year All the running status playing live in touch-screen, convenient. Perfect failure & trouble-shooting querying system with red warning signal flicker if any failure occurred. Stop--time could be set at your will. The thickness of the tube ice could be adjustable with setting the icing time.
About the ice tube machine : 1. Tube ice plant produces food grade ice. Tube ice is edible ice. Edible for human consumption, for hotesl, bars ,restaurants mixing with wines, juices, etc. 2. Tube ice making plant for the Evaporator
module and its Accessories
are installed on a steel frame forms the evaporator module. When transportation, place the evaporator horizontallya nd upright it when installing. For big tube ice plant, we will send engineer to your country to help with it. Tube ice external diameter: 22mm, 29mm and 35mm. -Inner diameter: 5mm-10mm, can be adjusted according to ice making time -Length: 25mm-50mm - We can make the size according to your requirements. The ice tube machine features: Perfect design: adopt 3D simulation assembly, compact structure, easy operation. Health: ice maker adopts SUS304, PE, and aluminium material to process, design of ice tube making plant everywhere of the machine is easy to clean. Efficient performance: ice maker adopt special alloy material and with special heat treatment, make the ice maker with best thermal performance.
Full automatical: PLC system controls the whole ice making process. Main application: Tube Ice Machine mainly apply for human consumption such as freeze drinks, mixing wines, cooling food stuffs,and also used for chemical cooling, food processing, fisheries, poultryprocessing, meat plants etc. They are popular for catering with the special large production range from 1000kg/24hrs to 60,000kg/24hrs. More and more ice factories sell ice in packed bags to a number of restaurant in cities,which seems gradually become a global trend, such as in Argentina, Brazil, Malaysia, South Africa, Venezuela, and our company could also make the Fully-automatic ice packing machine
and semi-automatic ice bagger machine for options. We can send more materials for your reference. Technical parameters: Refrigerant: R404A,R22 Standard ambient : 30 °C, water temp: 20 °C Workable temp: Ambient:5°C~40°C, water temp: 5°C~40°C. Ice tube external diameter:Φ22,Φ29,Φ35, So customer must confirmed us your local place condition of the ambinet temperature and the water inlet temperature, so we design our tube ice machine workable in your environment. Specification:
|Subject ||Unit ||Technical parameter |
|Power supply ||Voltage/Phase/Frequency ||380V/3P/50Hz |
|Refrigerant || ||R22 or R404A |
|Capacity ||Kg/day ||30000 |
|Temperature ||Ambient temperature ||°C ||35 |
|Waterinlet temperature ||°C ||20 |
|Operating power ||Total running power ||Kw ||116 |
|Installment power ||Kw ||140 |
|Operating power of cutter ||Kw ||3.7 |
|Operating power of cold water pump ||Kw ||5.5 |
|Fan motor of cooling tower ||Kw ||3.7 |
|Operating power of cold water pump ||Kw ||7.5 |
|Compressor ||Manufacturer || ||Bitzer |
|Refrigeration capacity ||Kw ||250.8 |
|Operating power ||Kw ||95.6 |
|Compressor COP/EER ||Kw/kw ||2.63 |
|Horse power ||Hp ||40×4 |
|Cooling way || ||Water cooling |
|Dimension ||Size of ice maker ||(L×W×H)(mm) ||Unit:3500×2200×2000 |
|Size of cooling tower ||(O.D.×H)(mm) ||Φ3770×3490 |
|Size of liquid pipe of cooling tower || ||11-1/4" |
|Size of cooling water pipe || ||4" |
|Size of waterinlet pipe of ice maker || ||1-1/4" |
|Size of ice outlet ||mm ||500×400 |
|Weight of unit ||Operating weight of tube ice maker ||Kg ||Unit:3860 |
|Operating weight of cooling tower ||Kg ||2730 |
|Water supply pressure requirement ||Bar ||1.5 |

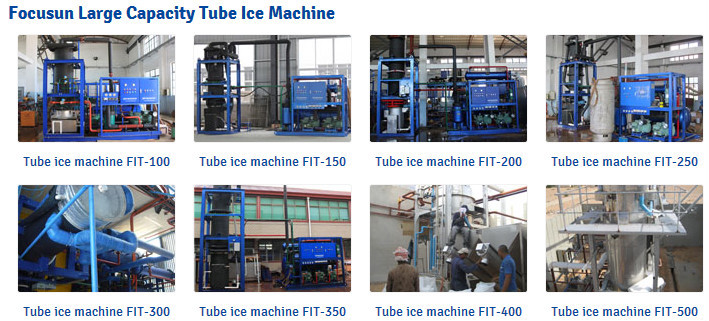

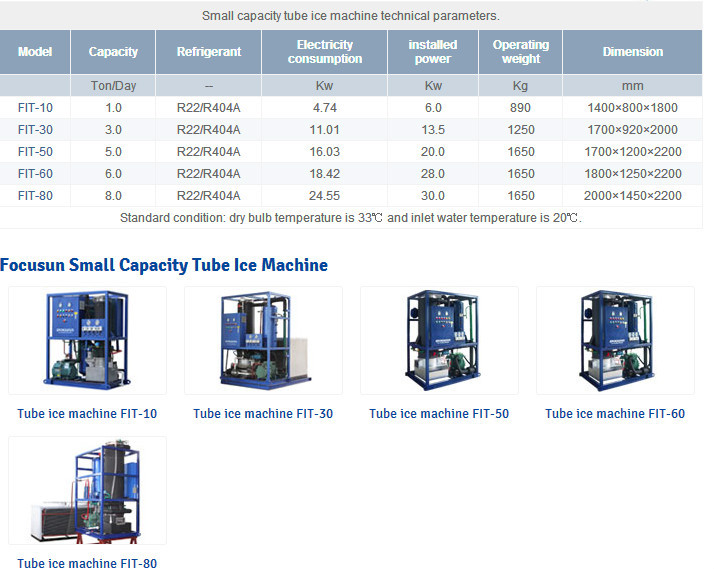

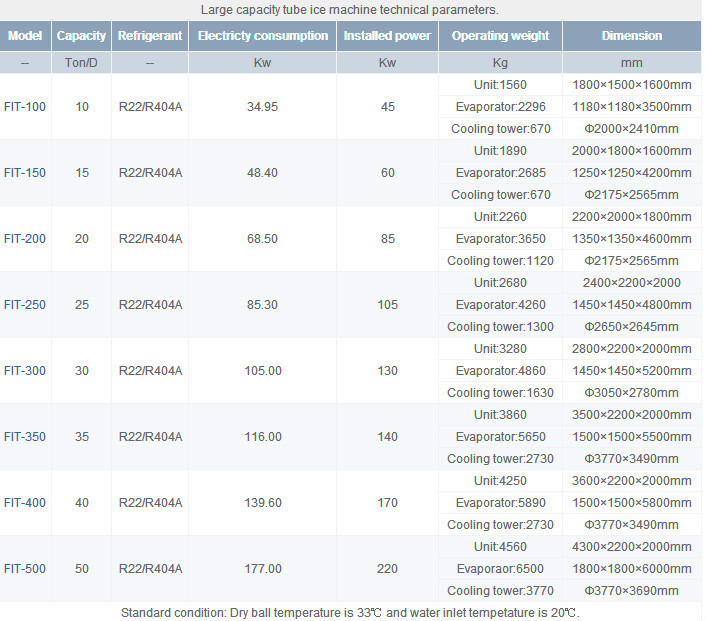

Different capacity ice tube making machine of Focusun.
Perfect service system:
All Focusun ice machines come out with 15 months full warranty. If the machine breaks down in 15 months, Focusun will send the parts for free, even send the technician over if situation needed. When beyond the warranty, Focusun will supply the parts and service only for factory cost.
|Process: ||Please provide the copy of Sales Contract and describe the problems appeared. |
|Slight problem: ||Please send the proof to our After-Sales Department, we will reply within two days. |
|Serious problem: || |
|A ||We will dispatch our Quality and Problems Appraisers to make a confirmation. |
|B ||Have a negotiation of the compensation and sign agreements |
|C ||Our After-Sales Department will perform the duties as the agreement |
Dear friends, don't hesitate to send your inquiry if you are interested!
Contact us if you need more details on tube ice making machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about ice making machine、tube ice maker. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product Categories : Tube Ice Machine
