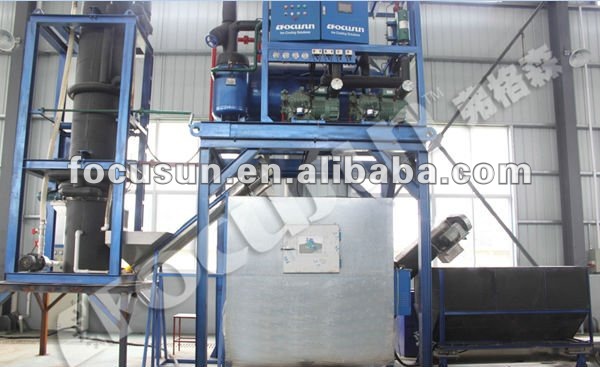

20MT/day Industrial tube ice factory with screw ice conveyor, high quality tube ice evaporator

Focusun high quality 20ton/day tube ice making machine with screw ice conveyor , we provide a complete systems solutions. Also supply Tube ice crusher, tube Ice packaging machine, Ice storage room, etc. Once your requirements is confirmed, we will design the layouts for your, and we will provide the best possible supports for your project.   Model: FIT-200   Capacity:20ton/day Refrigeration system: R22 or R404A Cooling mode: Water cooled is recommend, it has better cooling efficiency, the cost is the lowest. Power supply:380V/3P/50Hz, can be customized according to your local power condition If the power can not be supplied, we have rich experience in recommending you the cost-effecitve diesel generator.    As we know, tube ice is widely used in coffee shops, bars, restaurant, and mostly used in freezing drinks, mix wines, cool foodstuffs, make ice pastries, and keep fresh, food production process, cold accumulation, chemical industry process, etc.  The ice business is very good and you can gain great benefits.     tube ice is thick and transparent with long storage period, it isn't likely to melt in a short time. which has external diameter 22mm, 29mm, 35mm, Focusun also can customerized for you. Length ranging from 25-50mm, and the inner hole diameter can be adjusted according to ice-making time.

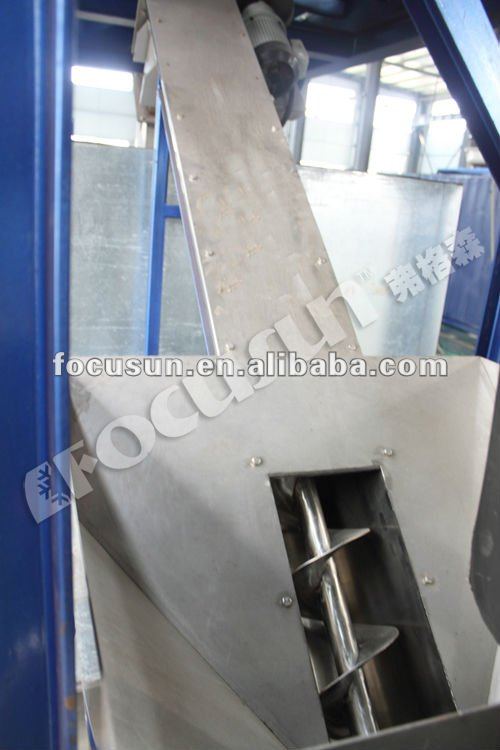

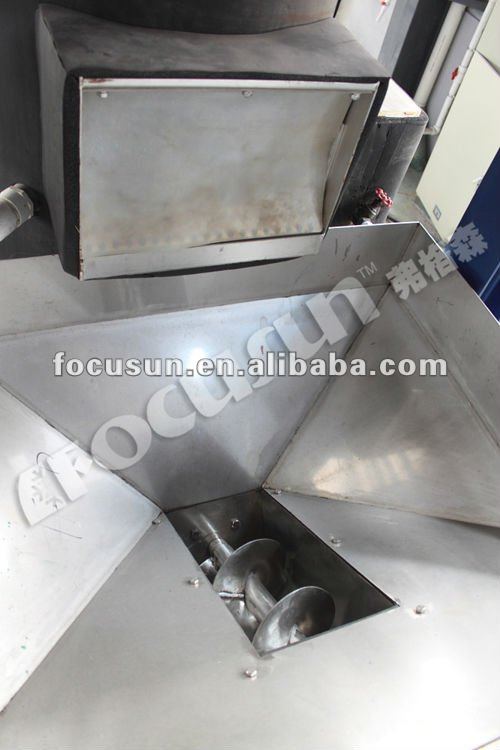

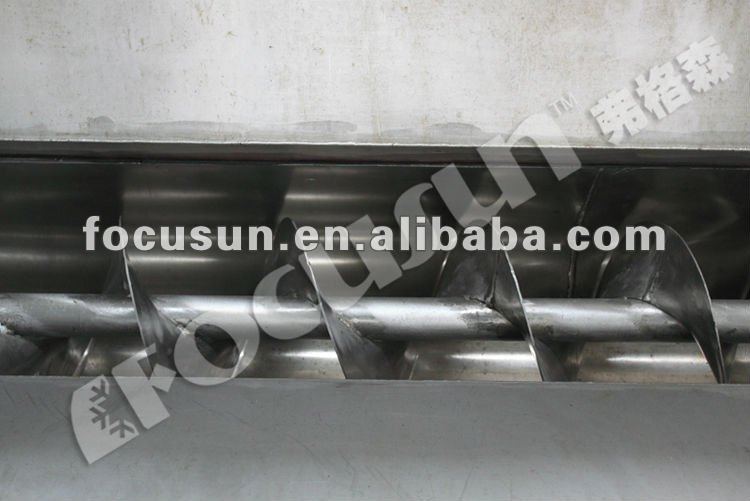

Focusun adopt special recycling ice making way to get rid of the impurities in water, the ice appears to be tasteless, sanitary, transparent, good-looking, shape of unity, completely conforms to food standards. Which can be directly eaten, for human consumption.   Especially for such large capacity, we need a screw ice conveyor to screw the tube ice from the ice outlet to the designated place or ice storage room.

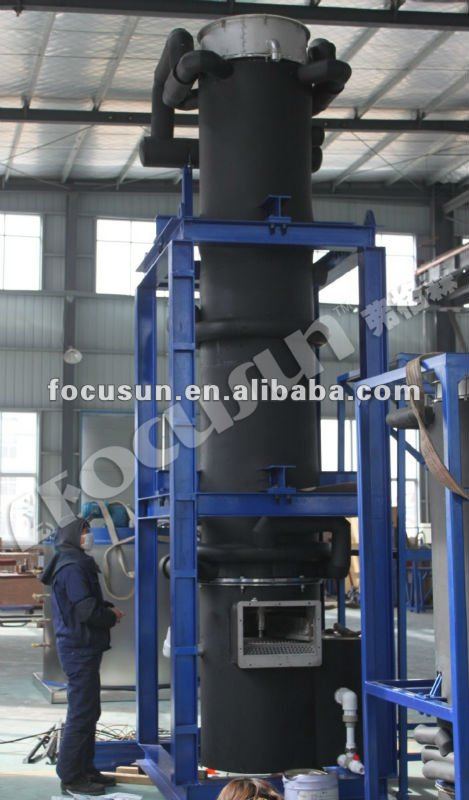

    Tube Ice Making Machine Features: Use hot Freon gas to make ice fall off fast with the whole process takes only 150~180 seconds. After the ice is off, the water of low temperature is used for ice-making, saving energy consumption and increasing the volume of production of ice. With the unique water distributive pan and air mouth, the water can evenly flow on the tube wall of the Evaporator spirally, so it improves the efficiency of heat transfer. The use of stainless steel SUS304,aluminum alloy plate-type evaporator, accords with the health and safety requirements. The use of air pressure control excludes the risk of rupture of the evaporator tube and the tube ice diameter can be adjusted according to customers' needs. Half-full liquid: liquid level controller which manages liquid supply of refrigerant makes the system more stable.   All equipments are assembled in the steel frame, except cooling tower. Adopt the highest quality spare parts of international brands, such as Bitzer, Danfoss, Siemens, etc.     Please contact us, tell us your requirements. we can give you suggestins in guiding you to build a tube ice plant.

Contact us if you need more details on tube ice factory. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Ice Maker Evaporator、tube ice evaporator. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Tube Ice Machine
